oil pans and accessories

OIL PANS AND ACCESSORIES

Oil is an engine’s lifeblood and a high-quality Chevrolet Performance oil pan is what keeps it where it belongs. Properly designed and manufactured oil pens fit right, and when used with matching Chevrolet Performance gaskets, prevents leaks. We have oil pans for street and competition applications. Oil pans are sold without dipsticks or other hardware unless otherwise noted.

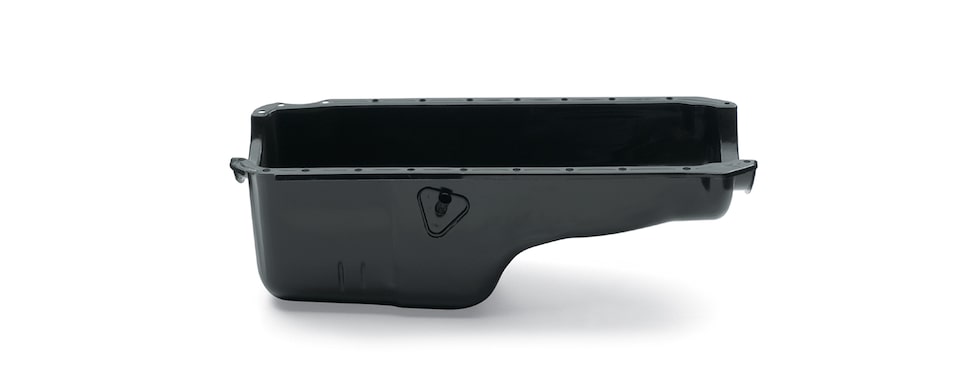

14091356

Corvette Oil Pan, 1965-1974

  • 5-quart pan has a trap-door baffle that controls oil slosh during cornering and heavy braking
  • Windage tray is included and requires four mounting studs, P/N 3902885
  • Used on LS7 engine assembly P/N 3965774

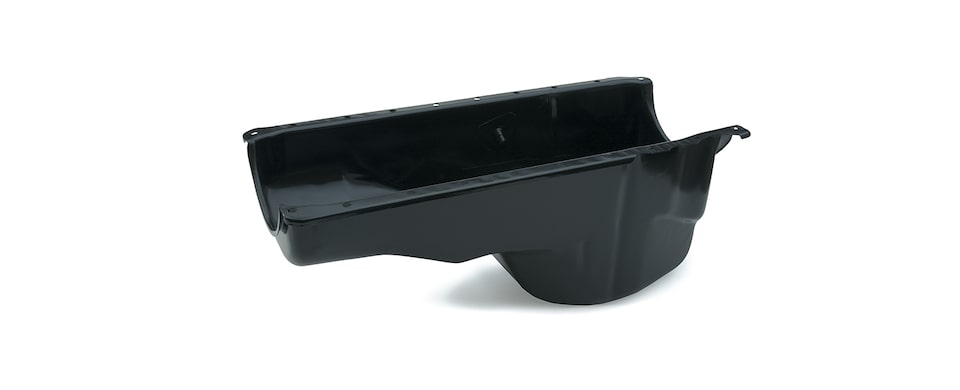

10240721

6-Quart Oil Pan, Gen-V and Gen-VI

  • Six-quart pan fits all 1991-and-newer Gen-V and Gen-VI, 427, 454, 502, and 572 engines

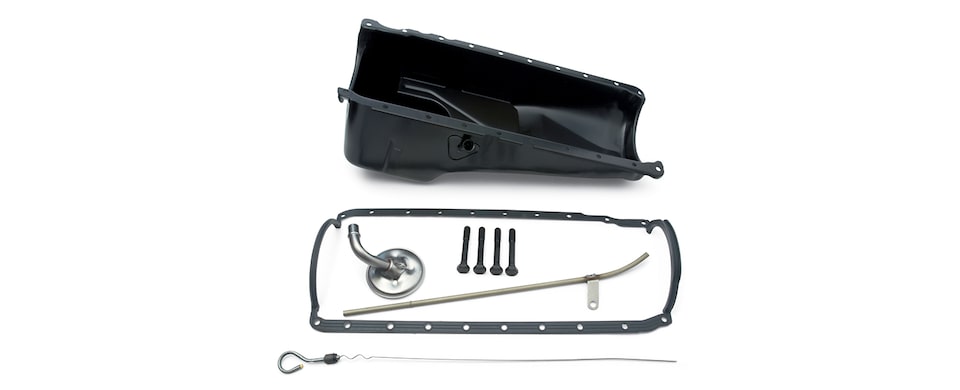

12495360

4-Quart Oil Pan, Gen-V and Gen-VI

  • Fits 1991-and-newer Gen-V and Gen-VI 427, 454 and 502 engines
  • Fits many early model Chevelles Camaros
  • Includes a 4-quart oil pan, 4 main cap bolts, oil pump screen, oil level tube, oil level gauge, and oil pan gasket
  • Pan is not available separately

NOTE: Not intended for competition or spirited street driving. Oil sump capacity is insufficient for performance driving. Oil system starvation may result from expended high-rpm operation, hard cornering or rapid acceleration.


12557083

Dipstick, 6-Quart

  • For use with production 6-quart oil pan P/N 10240721 or P/N 14103141
  • Use oil dipstick tube P/N 12550533 and seal P/N 274244

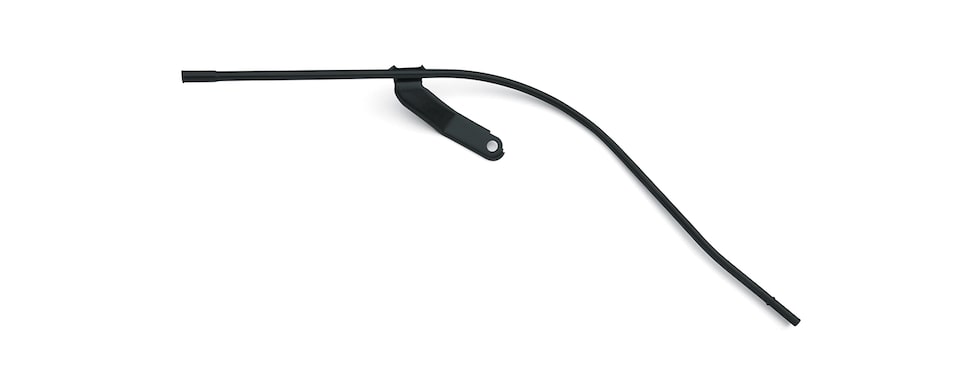

12550533

Dipstick Tube, 6-Quart

  • For use with production 6-quart oil pan P/N 10240721 or P/N 14103141
  • Use oil dipstick tube P/N 12557083 and seal P/N 274244

274244

Oil Dipstick Tube Seal, 6-Quart

  • For use with production 6-quart oil pan P/N 10240721 or P/N 14103141
  • Use oil dipstick tube P/N 1250533 and seal P/N 12557083

3989391

Dipstick, 4-Quart

  • For use with the 4-quart oil pan kit P/N 12495360 for all Gen-V and Gen-VI engines
  • Use a dipstick tube P/N 329231

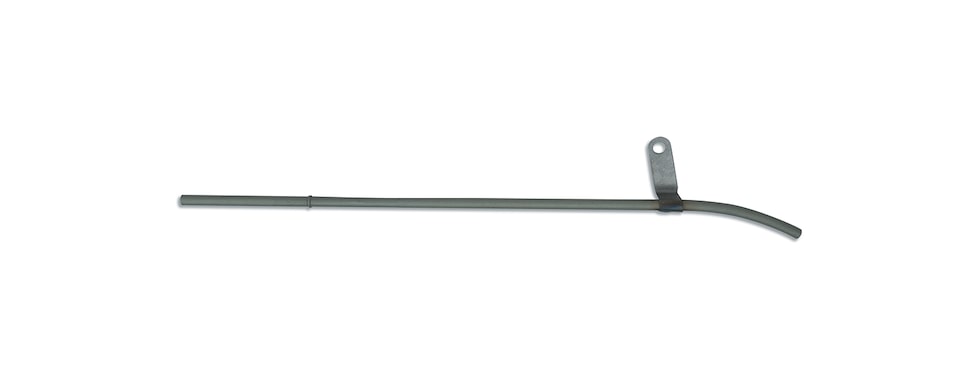

329231

Dipstick Tube, 4-Quart

  • For use with the 4-quart oil pan kit P/N 12495360
  • Use a dipstick tube P/N 3989391

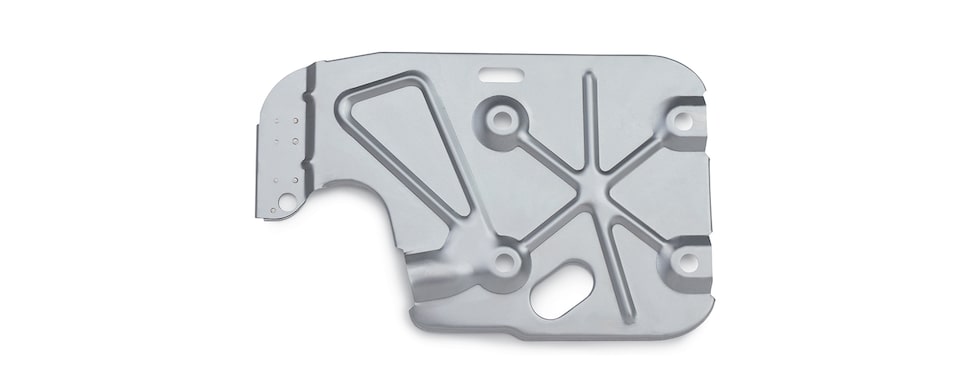

14097040

Windage Tray

  • Use with the Gen-V and Gen-VI 454 and 502 engines

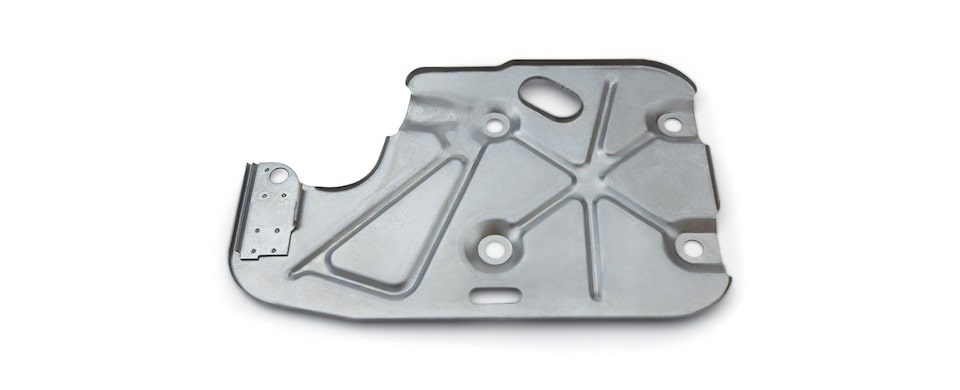

3967854

Windage Tray

  • Separates the oil from the spinning crank assembly to reduce aeration of the oil, aids in oil control and minimizes oil slosh under hard braking
  • Use with oil pan P/N 14091356
  • Requires four mounting studs P/N 3902885

88962187

Windage Tray, 572 Engine

  • Used on all 572-cubic-inch engines
  • Use with oil pan P/N 10240721, oil pan gasket P/N 19213986 and windage tray P/N 88958656

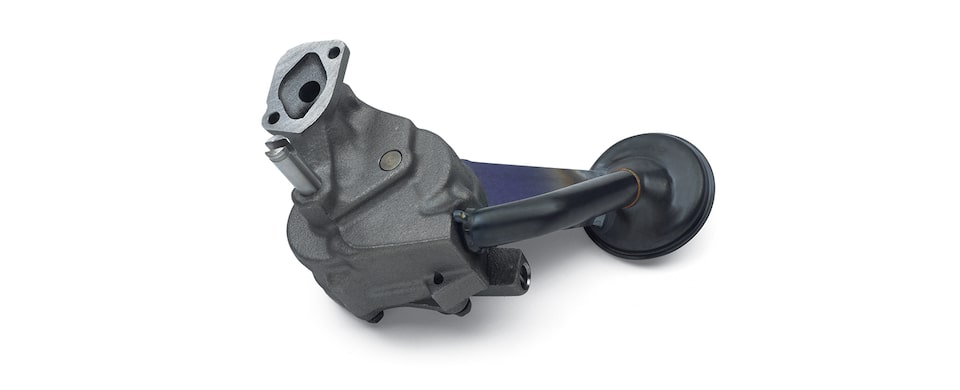

1931250

Oil Pump and Pick-Up, 572 Engine

  • For use with all 572-cubic-inch engines
  • Use with oil pan P/N 10240721, oil pan gasket
  • P/N 19213986 and windage tray P/N 88962187

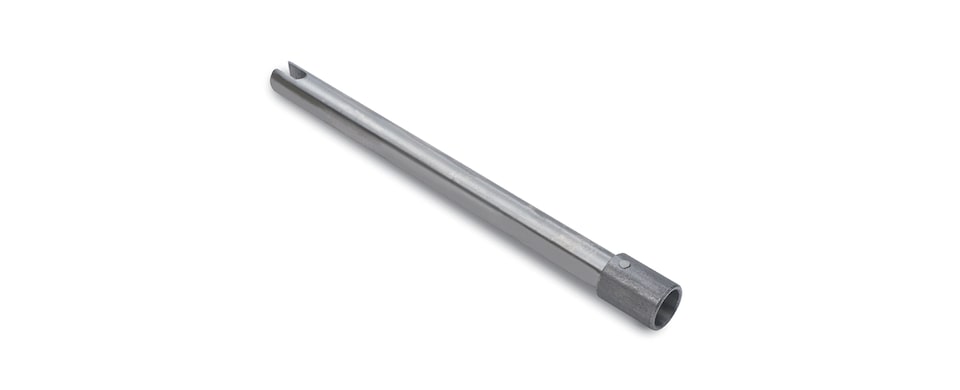

3865886

Oil Pump Shaft

  • Heavy-duty all-metal
  • Intermediate shaft fits all Big-Block engines

19210599

Oil Pump and Pick-Up, Gen-V and Gen-VI

  • For use with the Gen-V and Gen-VI 454 and 502 engines with 1-piece rear main seal
  • Pump has 1.300" gears and will fit Mark IV engines
  • Distance from the mounting surface to the bottom of the screen is 5.870"

NOTE: Tack-welding pick-up tube to pump is recommended.


3955281

Oil Pump Pick-Up

  • Distance from pump mounting surface to lowest point of screen is 4.800"

NOTE: Weld or braze the pick-up tube to the pump cover for off-highway applications.

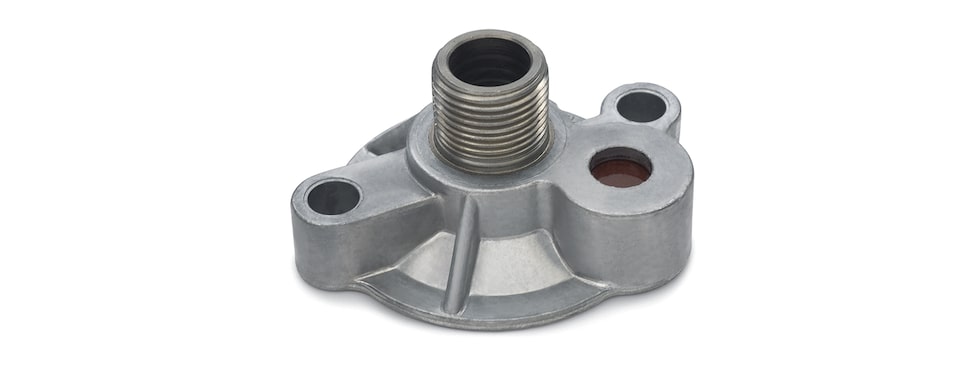

19299222

Oil Filter Adapter, fits Mark IV Blocks only

  • Mounts a spin-on cartridge oil filter
  • Contains a filter bypass valve used on all V-8 engines

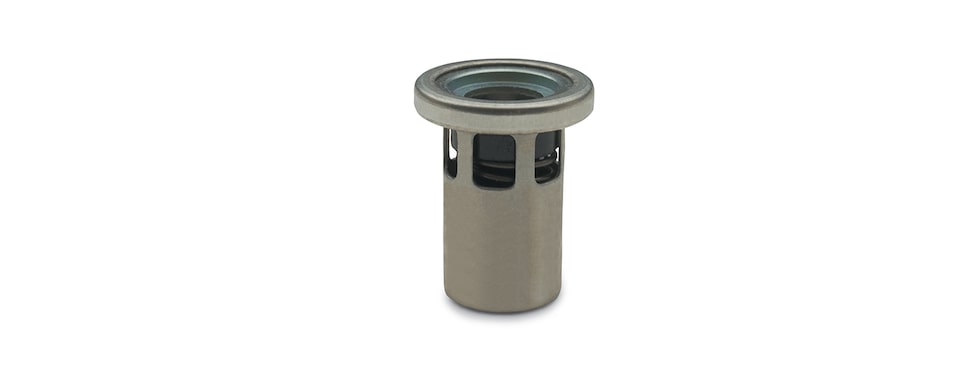

25013759

Oil Cooler Bypass Valve

  • For high-performance and Bowtie Big-Block with 4-bolt main bearings caps
  • Must be installed in the rear hole behind the oil filter adapter bolt to route oil through the cooler

24241872

Magnetic Drain Plug

  • Catches and holds small pieces of metal before they can cause engine damage
