LS/LSX ENGINE CONTROL MODULES AND HARNESSES

The engine control module is the brain of your Gen IV LS-powered project vehicle. And Chevrolet Performance is your source for controllers designed for easy “plug-and-play” installation and in most applications, there is no need for third-party tuning adjustments.

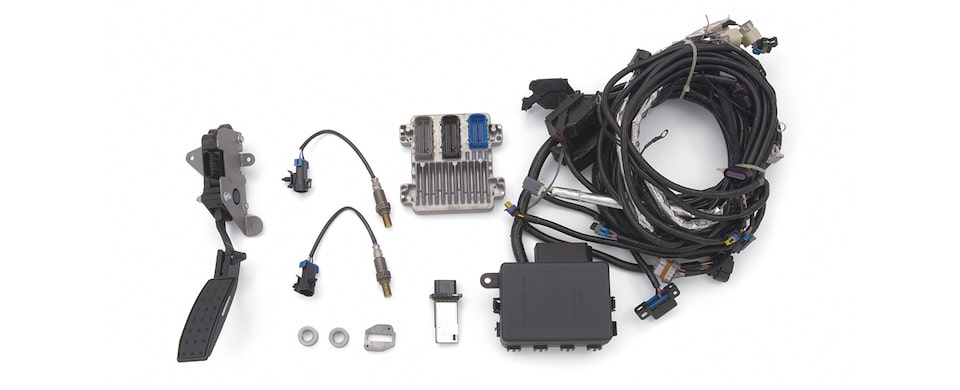

Most kits include:

  • Two oxygen sensors
  • Two oxygen sensor mounting bosses (for installation in the exhaust system)
  • A mass airflow meter
  • A mass airflow meter mounting boss (for installation in the air intake system)
  • A throttle pedal assembly (for use with the electronically operated throttle)
  • A specific oil pressure sensor that is compatible with the harness (when needed)
  • A complete wiring harness with fuse box and necessary cam sensor and MAP sensor jumpers
  • Programmed controllers
  • An instruction sheet

19354324

LC9 5.3L Engine Controller Kit

  • Specially programmed for GM 5.3L V-8 retrofit applications
  • Works with 2007-2009 5.3L engines with the following engine codes: LC9 (2007-2009), LH8 (2008-2009), LY5 (2007-2009), LMF (2008-2009), and LMG (2007-2009) – non-cam-phased engines
  • Max 6,000 rpm
  • Does not engage cylinder-deactivating Active Fuel Management and other features not required for retrofit installations
  • For individual engine controller, use P/N 1935425 (included in kit)

19354326

LC9 5.3L Engine Controller Kit

  • Specially programmed for late-model 5.3L LC9 cam-phased engines (2010 or newer)
  • Does not engage cylinder-deactivating Active Fuel Management and other features not required for retrofit installations
  • Max 6,000 rpm
  • This is the optimum off-road kit for the LC9 5.3L engine, P/N 19259918

19356410

L96 6.0L Engine Controller Kit

  • Includes all components needed to run L96 6.0L crate engine, P/N 12677741

19354328

LS2/LS3 Engine Controller Kit

  • Includes all components required to run LS3 crate engines
  • Max 6,600 rpm
  • For individual engine controller, use P/N 19354329 (included in kit)

19354330

LS376/480 Engine Controller Kit

  • Includes all components required to run LS376/480 crate engines
  • Max 6,600 rpm
  • For individual engine controller, use P/N 19258268 (included in kit)

19354332

LS376/525 Engine Controller Kit

  • Includes all components required to run LS376/525 crate engines
  • Max 6,600 rpm
  • For individual engine controller, use P/N 19259291 (included in kit)

19354334

LS7 Engine Controller Kit

  • Includes all components required to run 2006-2013 LS7 crate engines
  • For individual engine controller, use P/N 19258554 (included in kit)
  • Will run all M/Y LS7s with MAP sensor 12615801
  • Max 7,100 rpm

19354336

LSA Engine Controller Kit

  • Includes all components needed to run LSA crate engines
  • Max 6,200 rpm
  • For individual engine controller, use P/N 19259294 (included in kit)

19354338

LS9 Engine Controller Kit

  • Includes all components required to run LS9 crate engines
  • Max 6,600 rpm
  • For individual engine controller, use P/N 19299463 (included in kit)

19368831

LT1 Wet & Dry Sump with 4-Pin Sensor & 4L/T56 Transmission

  • Includes all components required to run LT1 Wet Sump crate engines, with a 4-pin fuel pressure sensor with a 4-speed automatic or T56 Super Magnum manual transmission
  • Includes E-92 controller and fuel pump power module

19368833

LT1 Wet & Dry Sump with 3-Pin Sensor & 4L/T56 Transmission

  • Includes all components required to run LT1 crate engines, with a 3-pin fuel pressure sensor with a 4-speed automatic or T56 Super Magnum manual transmission
  • Includes E-92 controller and fuel pump power module

19368835

LT1 Wet & Dry Sump with 3-Pin Sensor and 8-speed Transmission

  • Includes all components needed to run LT1crate engines with 3-pin fuel sensor with an 8-speed Supermatic transmission.
  • Includes E-92 controller, fuel pump power module, and fuel pressure sensor for direct injection (4L/T56 Only)

19368837

LT376/535 Engine Controller Kit

  • Includes all components needed to run LT376/535 crate engines.
  • Includes E-92 controller, fuel pump power module, and fuel pressure sensor for direct injection (4L/T56 Only)

19368841

LT4 Wet & Dry Sump with 4-Pin Sensor and 4L/T56 Transmission

  • Includes all components needed to run LT4 Wet Sump crate engines with 4-Pin fuel pressure sensor with a 4-speed automatic or T56 Super Magnum manual transmission.
  • Includes E-92 controller, fuel pump power module, and fuel pump power module.

19366789

LT4 Wet Sump Engine Controller Kit (CTS-V and Camaro ZL-1)

  • Includes all components needed to run LT4 Wet Sump crate engine, P/N 19355404 for the CTS-V or P/N 19368622 for the Camaro ZL-1 with 3-Pin fuel pressure sensors with a 4-speed automatic or T56 Super Magnum manual transmission
  • Also includes an E-92 controller and fuel pump power module

19368845

LT4 Wet & Dry Sump with 3-Pin Sensor & 8-speed transmission

  • Includes all components needed to run LT4 Wet Sump crate engine, P/N 19355404 for the CTS-V or P/N 19368622 for the Camaro ZL-1 with 3-Pin fuel pressure sensors with an 8-speed SuperMatic transmission
  • Also includes an E-92 controller and fuel pump power module

19331686

LTG FWD Engine Controller Kit

  • Includes all the components required to run LTG crate engine, P/N 12677823.
  • Includes E-92 controller, fuel pump, power module, and fuel pressure sensor for direct injection

19328839

LTG RWD Engine Controller

  • Kit includes all components needed to run LTG crate engine, P/N 19328837
  • Includes E-92 controller, fuel pump power module, and fuel pressure sensor for direct injection

19354340

DR525 Engine Controller Kit

  • Engine controller and harness kit for operating DR525 racing engines, P/N 19329009 and P/N 19329008
  • Includes throttle pedal for electronic throttle body communication
  • Note: The engine controller in this kit is a “factory-sealed unit, incorporating a tamper-proof design” to comply with rules mandated by the NMCA.

19354344

LSX454 Engine Controller Kit for Manual Transmission

  • Includes all components required to run LSX454 crate engines
  • Max 7,100 rpm
  • For individual engine controller, use P/N 19244482 (included in kit)

19354342

LSX454 Engine Controller Kit for Automatic Transmission

  • Includes all the components required to run LSX454 crate engine, P/N 19244611 max rpm 7,100
  • For individual engine controller, use P/N 19299841
  • NOTE: The controller will not function in a production vehicle unless all kit components are used.
  • These controllers will not operate any of the production gauges. Aftermarket gauges are required
