SMALL-BLOCK BOWTIE SPORTSMAN BLOCKS

12480174

350 BOWTIE SPORTSMAN BLOCK, 1-PIECE REAR MAIN SEAL

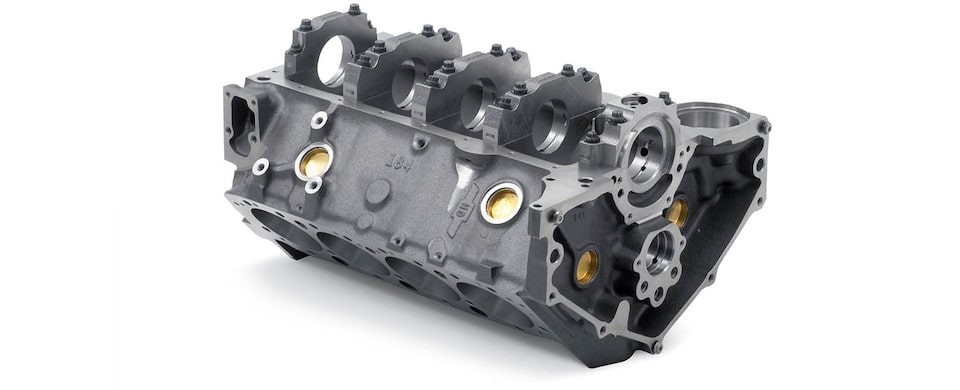

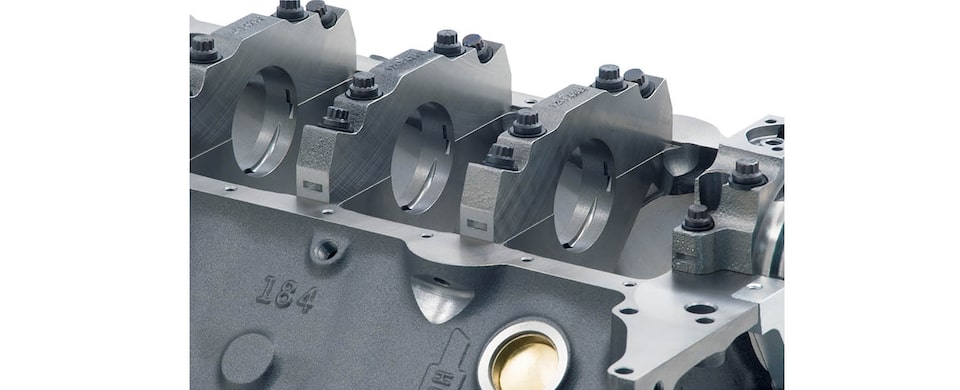

Chevrolet Performance Small-Block Bowtie Sportsman Engine Block 4-Bolt Splayed Main Caps View

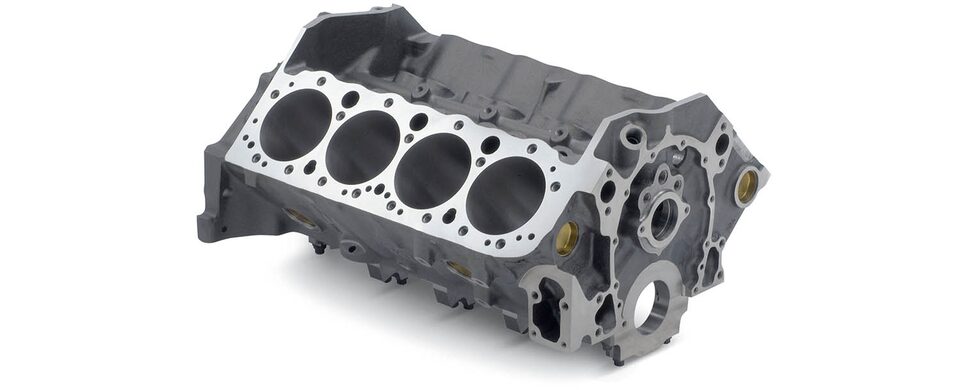

Chevrolet Performance Small-Block Bowtie Sportsman Engine Block Top Front View

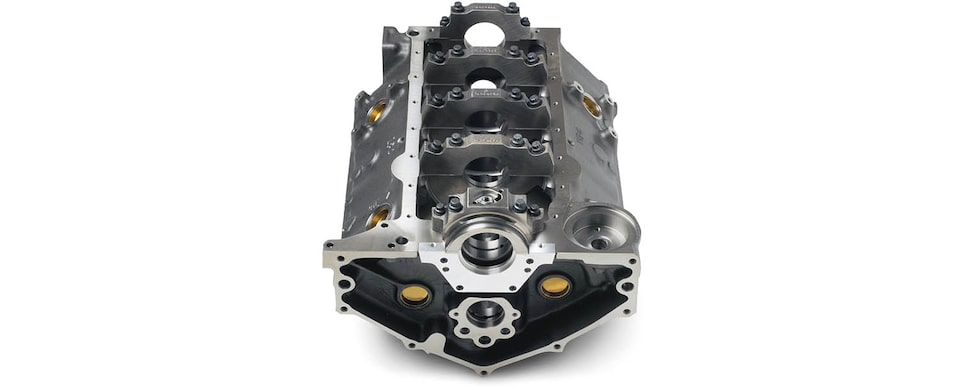

Chevrolet Performance Small-Block Bowtie Sportsman Engine Block 2-Piece Rear Main Seal View

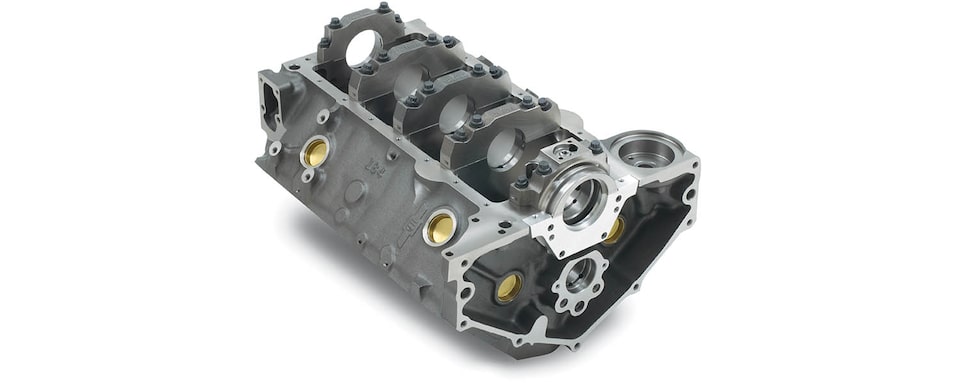

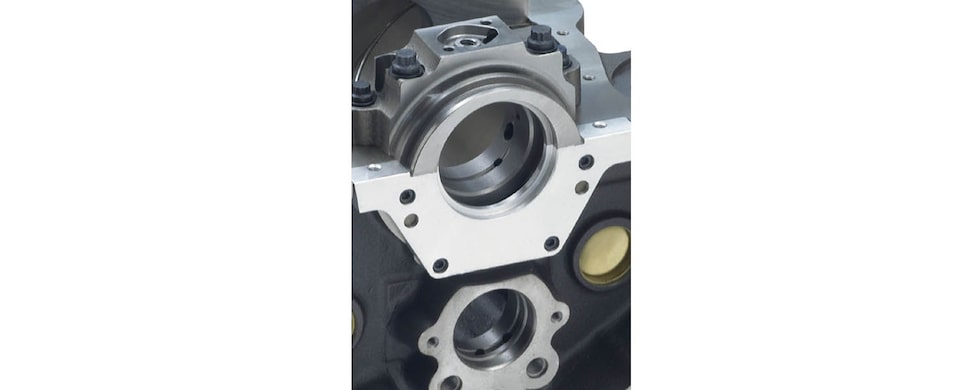

Chevrolet Performance Small-Block Bowtie Sportsman Engine Block for use with 1-Piece Seal Adapter Bottom Rear View

CNC-machined cast-iron competition block
+/-0.001” machining tolerances
4-bolt mains, splayed caps on center three mains
3.980” finished bore

4.155” max bore (siamesed cylinder bores)
Extra-smooth gasket surfaces
Tall lifter bores
Comes with rear seal adapter

12480047

350 BOWTIE SPORTSMAN BLOCK, 2-PIECE REAR MAIN SEAL

Chevrolet Performance Small-Block 350 Bowtie Sportsman Engine Block with 2-Piece Rear Main Seal Bottom Rear View

Chevrolet Performance Small-Block 350 Bowtie Sportsman Engine Block with 2-Piece Rear Main Seal Rear Bottom View

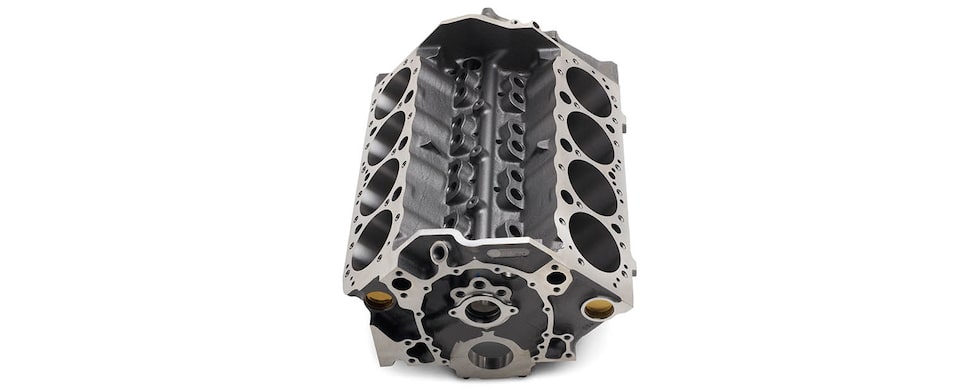

Chevrolet Performance Small-Block 350 Bowtie Sportsman Engine Block Valley Top Front View

CNC-machined cast-iron competition block
+/-0.001” machining tolerances
4-bolt mains, splayed caps on center three mains
3.980” finished bore

4.155” max bore (siamesed cylinder bores)
Extra-smooth gasket surfaces
Tall lifter bores

12480175

350 MAIN, 400 BORE SIZE BOWTIE SPORTSMAN BLOCK, 1-PIECE REAR MAIN SEAL

CNC-machined cast-iron competition block
+/-0.001” machining tolerances
4-bolt mains, splayed caps on center three mains
4.117” finished bore

4.155” max bore (siamesed cylinder bores)
Extra-smooth gasket surfaces
Tall lifter bores
Comes with rear seal adapter

12480157

350 MAIN, 400 BORE SIZE BOWTIE SPORTSMAN BLOCK, 2-PIECE REAR MAIN SEAL

CNC-machined cast-iron competition block
+/-0.001” machining tolerances
4-bolt mains, splayed caps on center three mains
4.117” finished bore

4.155” max bore (siamesed cylinder bores)
Extra-smooth gasket surfaces
Tall lifter bores

12480049

400 MAIN, 350 BORE SIZE BOWTIE SPORTSMAN BLOCK, 2-PIECE REAR MAIN SEAL

CNC-machined cast-iron competition block
+/-0.001” machining tolerances
4-bolt mains, splayed caps on center three mains

3.980” finished bore
4.155” max bore (siamesed cylinder bores)
Extra-smooth gasket surfaces
