SMALL-BLOCK CYLINDER-BLOCK COMPONENTS

12363238

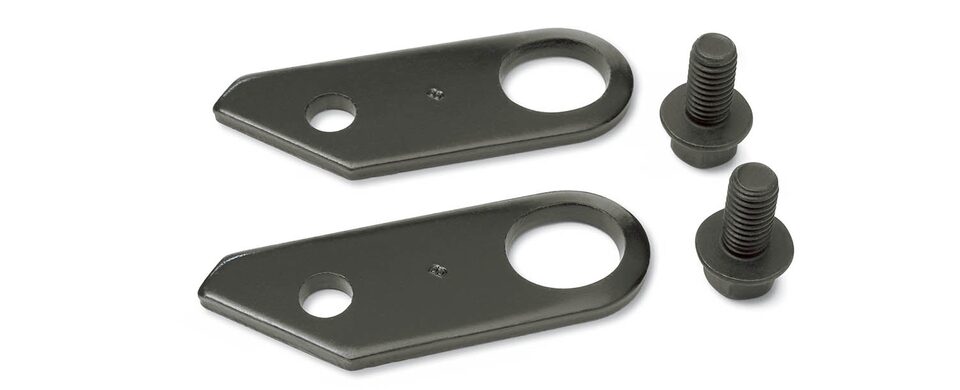

UNIVERSAL ENGINE LIFT BRACKETS

  • Designed to bolt to the end of cylinder heads for removal and installation of the engine
  • Made from 0.200” steel and have .880” X 1.000 hook slots
  • Use with 3.8” or 7/16” bolts
  • Includes two brackets and two 7/16” bolts

94673017

FREEZE PLUG, 1-5/8” BRASS

  • Brass freeze plug is recommended for marine applications

10121044

REAR OIL SEAL, 2-PIECE DESIGN

  • Rear oil seal for V-8 and V-6 engines with pre-1985 style 2-piece oil seal design
  • Used by many professional stock car teams for leak protection

12480004

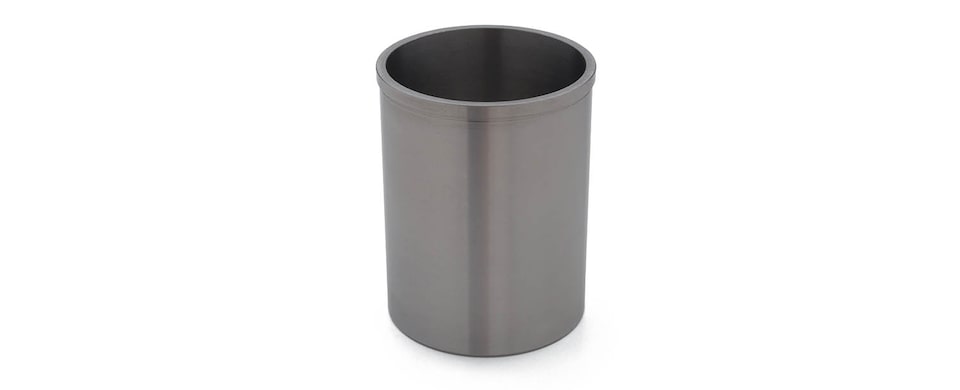

CYLINDER SLEEVE, STANDARD

  • Standard-bore steel cylinder sleeve for late-design aluminum Small-Block V-8 and 90° V-6 aluminum blocks, including P/N 10134400, P/N 10134351, P/N 10185075, and P/N 10134371
  • NOTE: Sleeve has 3.980” bore.

12480018

OIL GALLEY PLUGS, ALUMINUM BLOCKS

  • Replacement oil galley plugs for all GM aluminum engine blocks, size AN-06

12499102

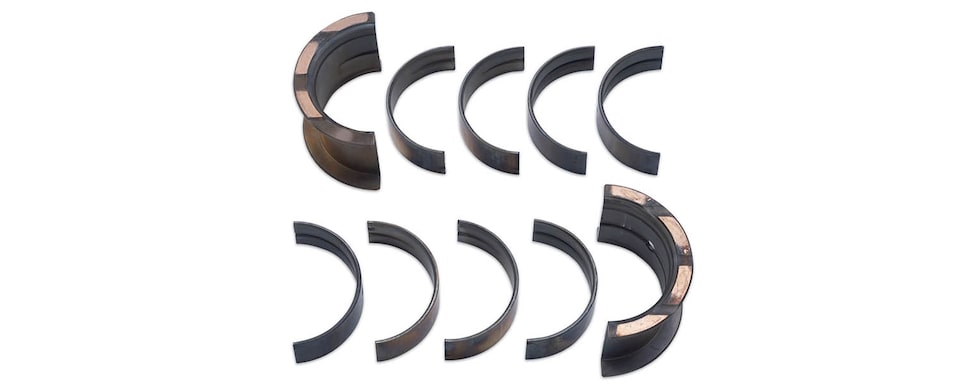

MAIN BEARING KIT, 350 ENGINE, STANDARD

  • Complete main bearing kit for 350-cubic-inch Small-Block V-8 with standard-size mains 4.135”

12480108

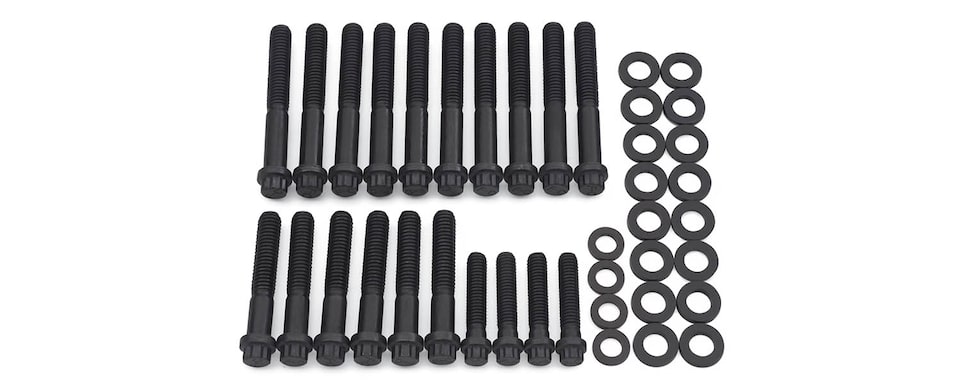

MAIN BEARING BOLT KIT, SPORTSMAN BLOCKS

  • Main bearing cap bolts designed specifically for the following Chevrolet Performance Sportsman Racing Blocks: P/N 12480047, P/N 12480174, P/N 12480157, P/N 12480159, P/N 12480174, and P/N 12480175
  • Bolts are Grade-8 with 12-point heads and black oxide-coated
