SMALL-BLOCK VORTEC CYLINDER HEADS

12558060

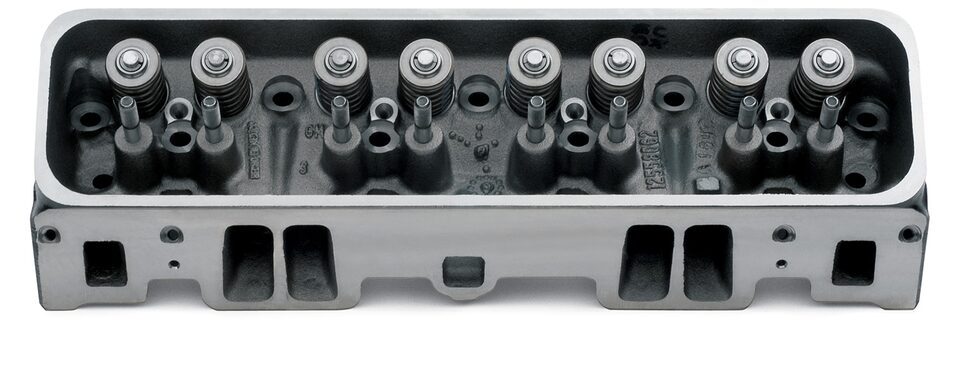

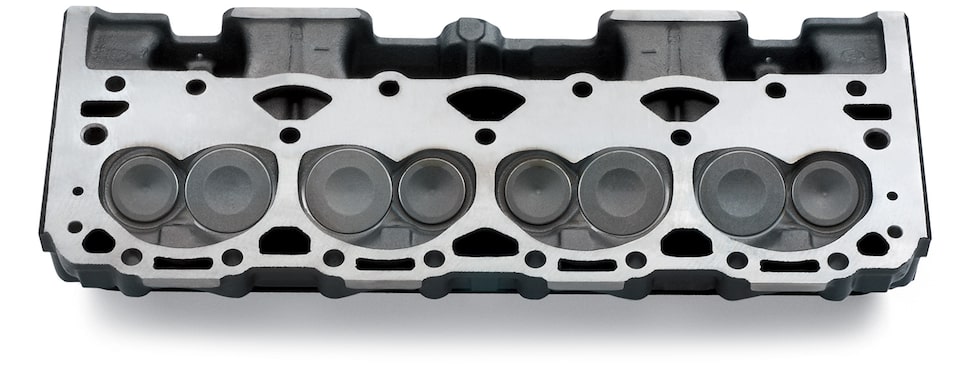

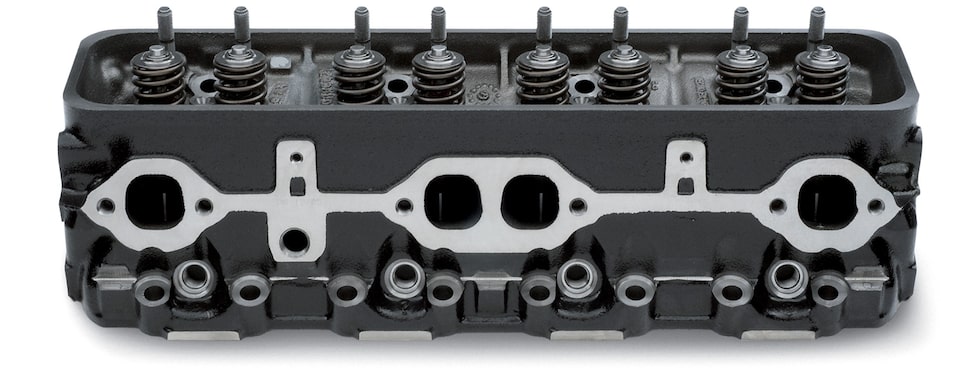

CAST-IRON VORTEC CYLINDER HEAD ASSEMBLY

Cast-Iron Vortec Cylinder Head Assembly Chevy Performance

Cast-Iron Vortec Cylinder Head Detail Chevy Performance

Chevy Performance Cast-Iron Vortec Cylinder Head Assembly

Completely assembled with 1.940"/1.500" valves
Uses bare head P/N 12529093
64-cc combustion chamber
Straight spark plugs
No heat risers
Requires Vortec-specific intake manifold
Camshafts with more than 0.475" lift require machining valve guide bosses and checking valve seal to valve spring retainer clearance

Can be machined for 2.020"/1.600" valves
Rocker arm studs can be pinned or drilled and tapped to 3/8"
Valve spring seat diameter is 1.280"
Casting number 10239906 or 12558062
