MANUAL TRANSMISSION INSTALLATION KITS

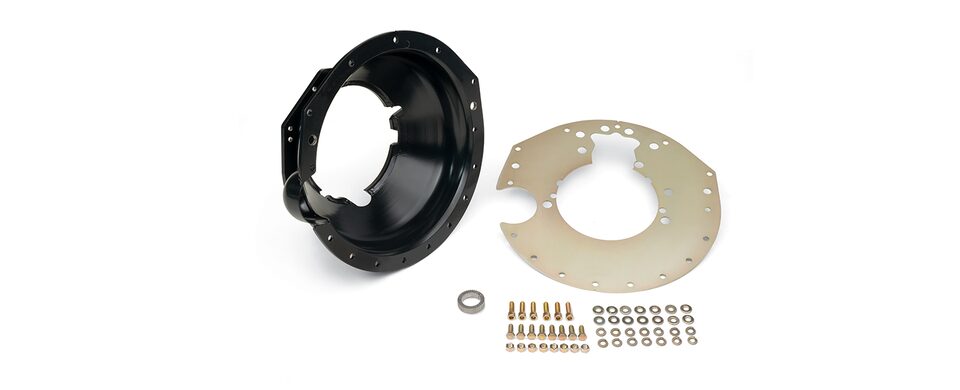

19329025

Bell Housing Kit – Small-Block and Big-Block Engines

  • Allows T56 Super Magnum transmission P/N 19352208 to bolt up to a Gen I Small-Block and all Big-Block engines
  • SFI steel bell housing
  • Includes Block-Saver Plate and attaching hardware
  • 5.950" deep
  • Clutch kit not included. Use clutch kit P/N 19329633 for Small-Block and P/N 19329634 for Big-Block
  • Designed for hydraulic concentric slave cylinder release bearing P/N 24264182

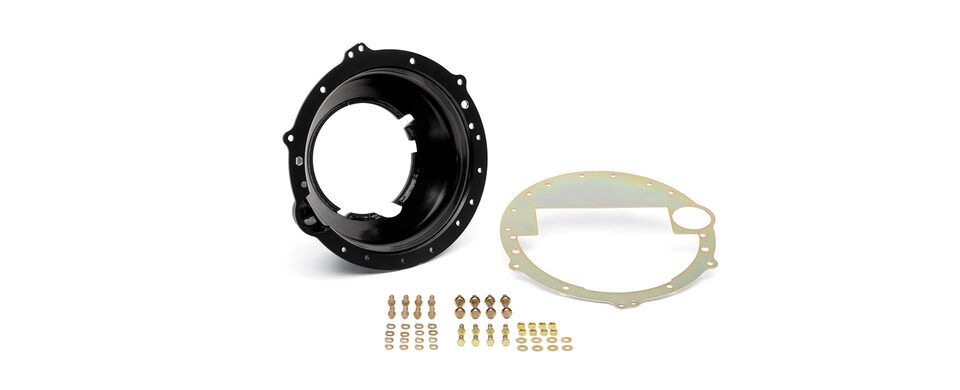

19329620

Bell Housing Kit – LS and LT Engines

  • Allows T56 Super Magnum transmission P/N 19352208 to bolt up to any Gen III/Gen IV LS engine or Gen V LT engine
  • SFI steel bell housing
  • Includes Block-Saver Plate and attaching hardware
  • 5.555" deep
  • Clutch kit not included. Use clutch kit P/N 19329635 for engines with 8-bolt flange including LT engines P/N 19331082, for engines with 9-bolt flange and P/N 19331079 for engines with 6-bolt flange
  • Designed for hydraulic concentric slave cylinder release bearing P/N 24264182

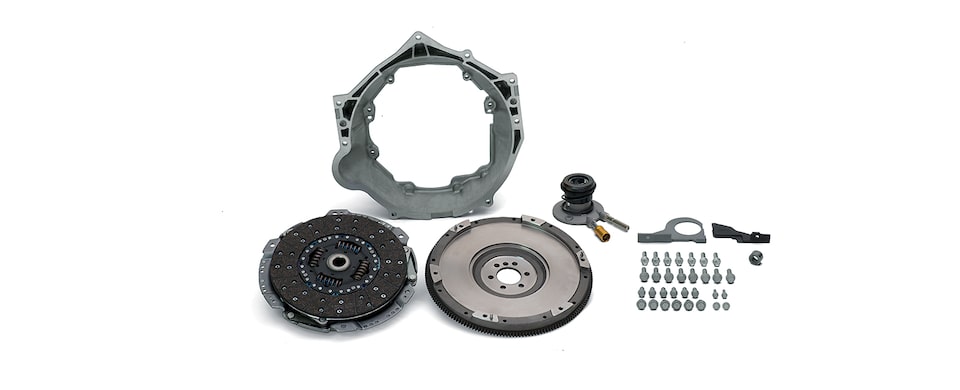

19301625

Transmission Installation Kit – TREMECT56 Super Magnum for LS engines with 6-bolt flange

  • Use with T56 Super Magnum transmission P/N 19352208 and LS engines except LSA, LSX376-B15, LSX454 and LSX454R
  • LS7-style flywheel with 6-bolt flange
  • LS7-style high-strength clutch and pressure plate
  • Fourth-generation F-body-type bell housing and clutch release bearing included
  • Kit includes dust covers, hardware and instructions

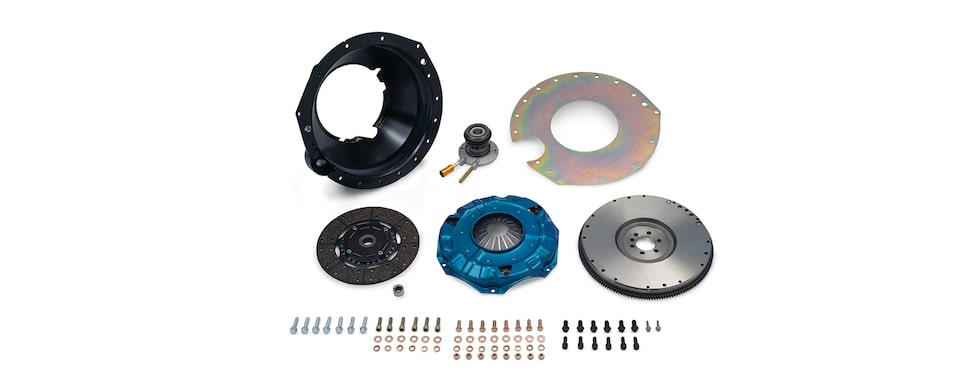

19329900

Transmission Installation Kit – TREMEC T56 Super Magnum for Small-Block

  • Use with T56 Super Magnum transmission P/N 19352208 Small-Block engines with one-piece rear main seal
  • Not for use with 350/290 HP (P/N 12499529) and 350/290 HP Deluxe (P/N 19244450) crate engines, which use a two-piece main seal
  • Use transmission installation kit P/N 19329902 for 350/290 HP engines with two-piece main seal
  • Super Magnum bell housing
  • 1986 and later flywheel
  • High-strength clutch and pressure plate
  • Kit includes dust covers, pilot bearing, hardware and instructions

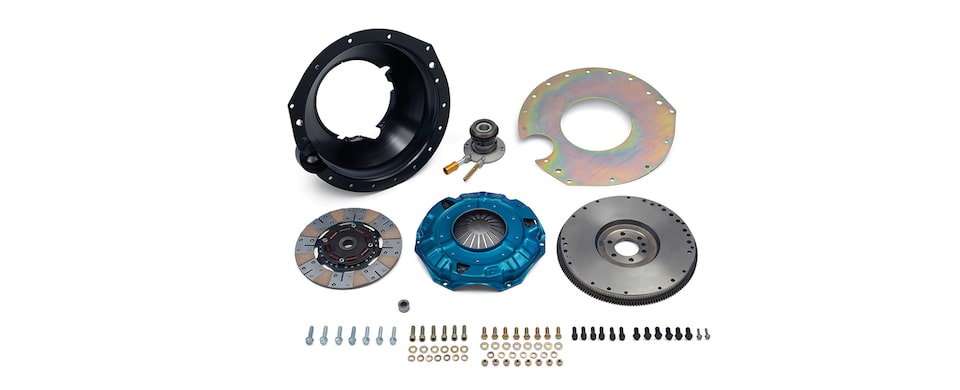

19329901

Transmission Installation Kit – TREMEC T56 Super Magnum for 454 and 502 Big-Block

  • Use with T56 Super Magnum transmission P/N 19352208 and 454 and 502 crate engines (externally balanced)
  • Not for use with 427/572 engines that are internally balanced
  • Super Magnum bell housing
  • Externally balanced flywheel
  • High-strength clutch and pressure plate
  • Kit includes dust covers, pilot bearing, hardware and instructions

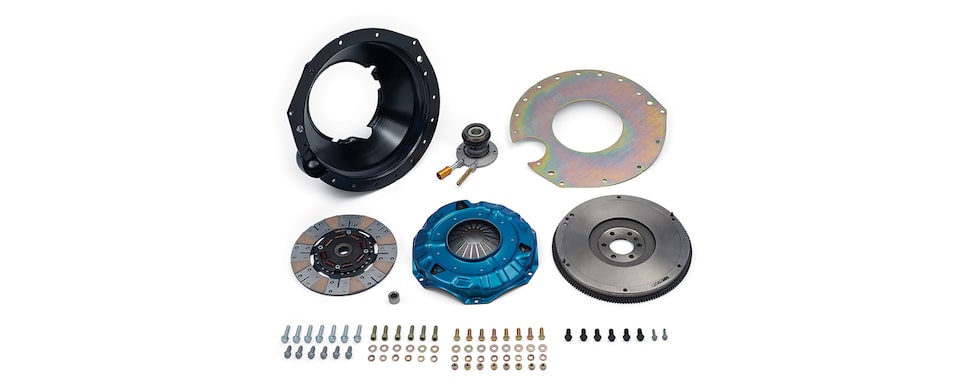

19329902

Transmission Installation Kit – TREMEC T56 Super Magnum for 427 and 572 Big-Block

  • Use with T56 Super Magnum transmission P/N 19352208 and 427 and 572 crate engines (internally balanced)
  • Use also with 350/290 HP crate engines with two-piece main seal
  • Not for use with 454 and 502 engines that are externally balanced
  • Super Magnum bell housing
  • Internally balanced flywheel
  • High-strength clutch and pressure plate
  • Kit includes dust covers, pilot bearing, hardware and instructions

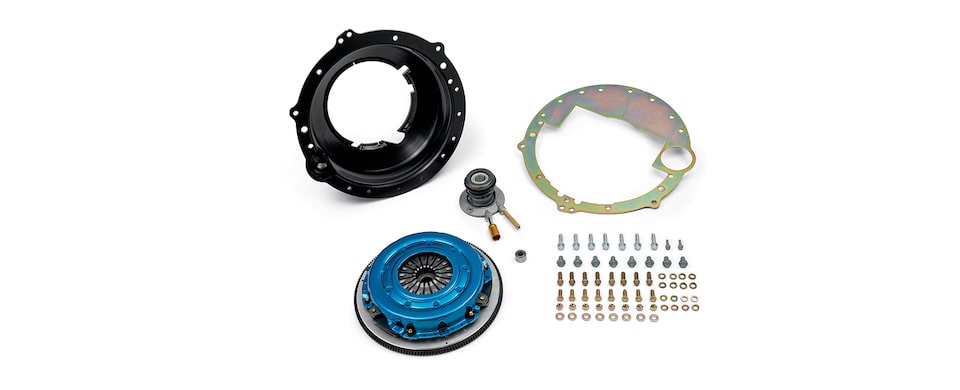

19329912

Transmission Installation Kit – TREMEC T56 Super Magnum for LS/LT engines with 8-bolt flange

  • Use with T56 Super Magnum transmission P/N 19352208 and LSA, LSX376-B15, LSX454 and LSX454R engines
  • Use with T56 Magnum transmission P/N 19352208 and new LT1 crate engines P/Ns 19328728 (wet sump) and 19329997 (dry sump), and LT4 crate engines P/Ns 19332621(wet sump) and 19332702 (dry sump)
  • Super Magnum bell housing
  • High-strength clutch and pressure plate
  • Kit includes dust covers, pilot bearing, hardware and instructions




19331080

Transmission Installation Kit – TREMEC T56 Super Magnum for LS engines with 6-bolt flange

  • Use with T56 Super Magnum transmission P/N 19329795 and all LS engines
  • Super Magnum bell housing
  • High-strength clutch and pressure plate
  • Kit includes hydraulic slave cylinder, pilot bearing, hardware and instructions




19331083

Transmission Installation Kit – TREMEC T56 Super Magnum for LS engines with 6-bolt flange

  • Use with T56 Super Magnum transmission P/N 19329795 and LS9 engines
  • Super Magnum bell housing
  • High-strength clutch and pressure plate
  • Kit includes hydraulic slave cylinder, pilot bearing, hardware and instructions

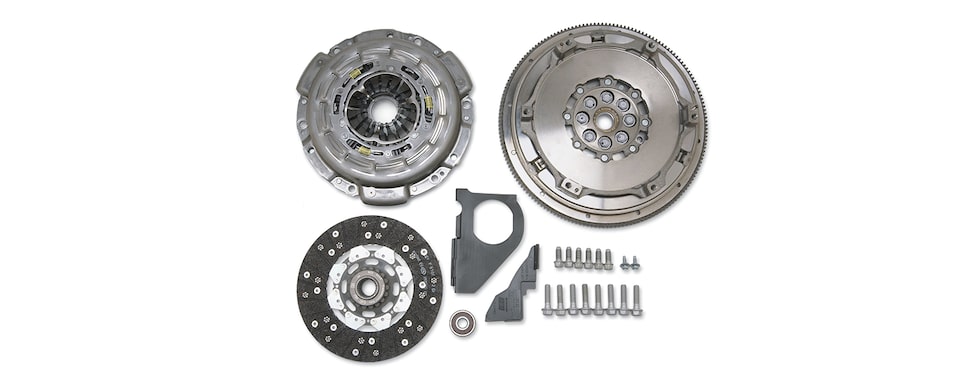

19259270

Transmission Installation Kit – TREMEC TR6060 (MG9) – 8-Bolt Flange

  • Use with TR6060 6-speed transmission P/N 24264047 only with LSA, LSX454 and LSX454R engines
  • Includes flywheel with 8-bolt flange, high-strength clutch and pressure plate, dust covers, hardware and instruction sheet
  • Clutch release bearing is included with the transmission assembly

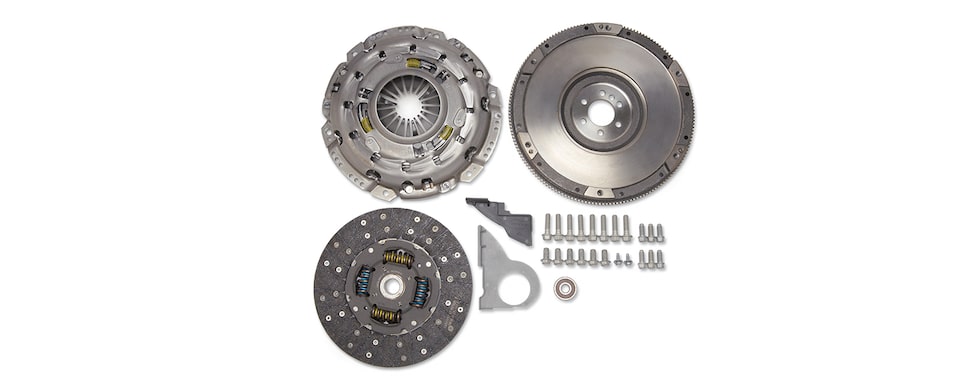

19259271

Transmission Installation Kit – TREMEC TR6060 (MG10) – 6-Bolt Flange

  • Use with TR6060 6-speed transmission P/N 92246731 on all LS engines except LSA, LS9, LSX454 and LSX454R
  • Includes flywheel with 6-bolt flange, high-strength clutch and pressure plate, dust covers, hardware and instruction sheet
  • Clutch release bearing is included with the transmission assembly

24266013

Release Bearing (actuator)

* Included with Transmission Kit P/N 92246731


19328978

LTG Six-Speed Manual Installation Kit – Front Wheel Drive

  • Includes all hardware and fasteners needed to make the transmission operational

24283758

LTG Six-Speed Manual Installation Kit – Front Wheel Drive

  • Includes hardware, shift cables and shifter to match the six-speed manual transmission P/N 24284070 to the LTG crate engine in front-wheel-drive applications
