19432410 kit not available for sale at this time. Pan only available P/N 1268771

OIL PANS, OIL PUMPS, GASKETS AND COMPONENTS

19432410

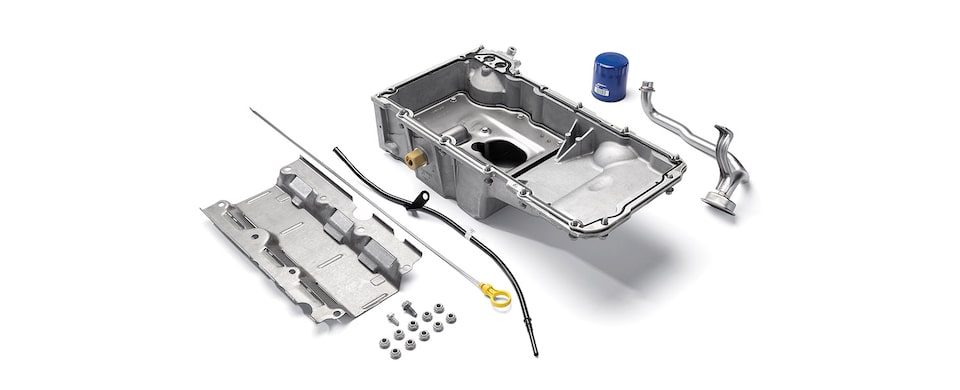

F-Car Oil Pan Kit

  • Rear-sump-type oil pan used on 1998-2002 Camaro and Firebird with the LS1 engine
  • 5.5-quart capacity with PF48 oil filter
  • Wet-sump design
  • Includes oil pan, dipstick and tube, gaskets, pickup tube, windage tray, and mounting hardware

12628771

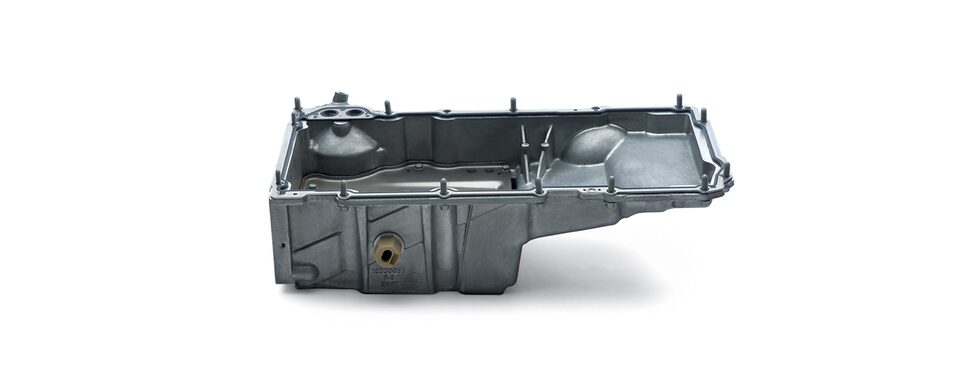

F-Car Oil Pan

  • Used on 1998-2002 Camaro and Firebird LS1
  • Uses PF48 oil filter

12561828

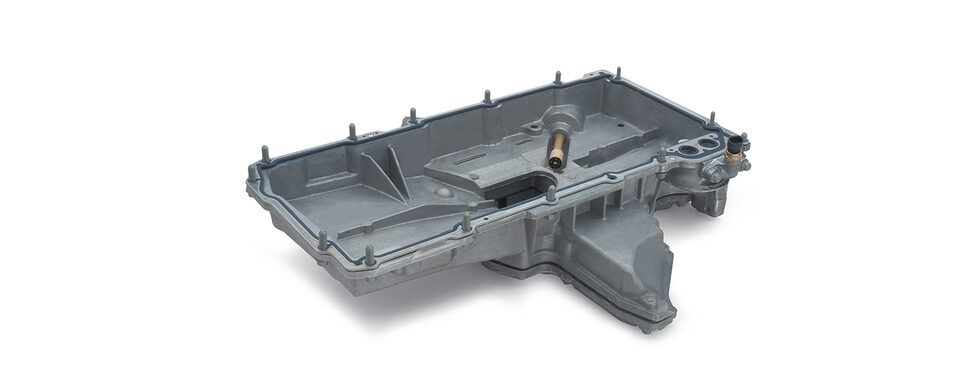

Corvette Oil Pan (2002-2004 LS6)

  • Used on 2002-2004 Corvettes with LS6

12628771

F-Car Oil Pan

  • Used on 1998-2002 Camaro and Firebird LS1
  • Uses PF48 oil filter

19243065

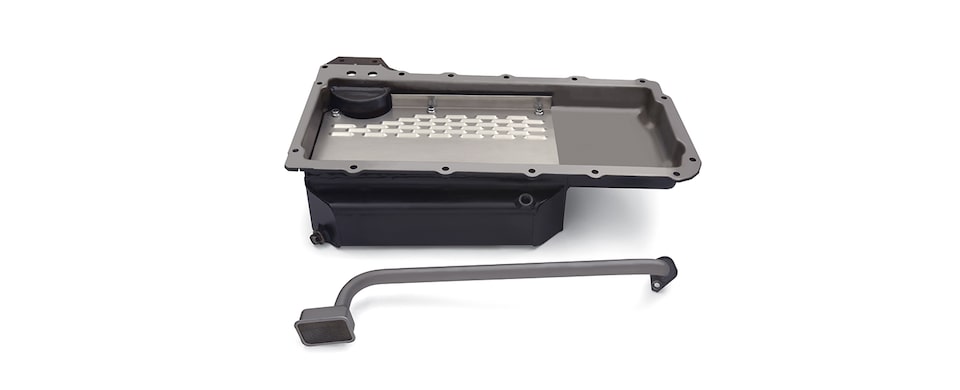

LS Circle Track Oil Pan

  • Used on CT525 P/N 19331563
  • 6-quart capacity (8-quart with remote filter and adapter)
  • Requires remote oil filter and adapter
  • Uses oil pan gasket P/N 12612350 (not included)

19212593

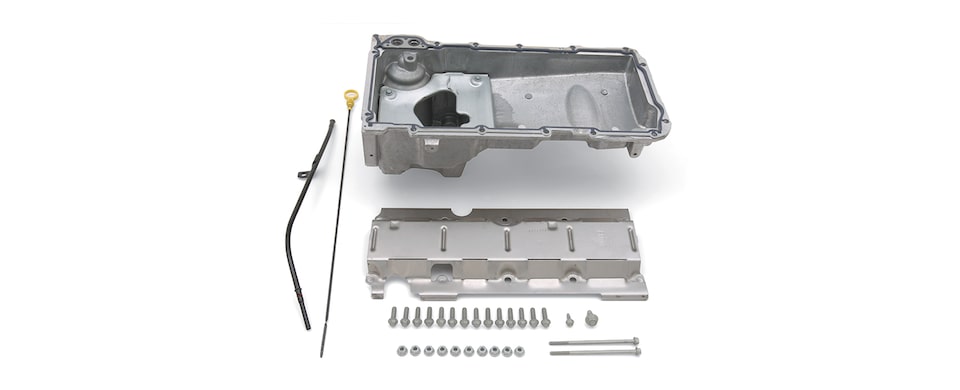

Muscle Car Oil Pan Kit

  • Fits virtually all 1955-1995 GM front engine, RWD, V-8 cars
  • 5-quart capacity
  • Includes oil pan, dipstick and tube, gaskets, pickup tube, windage tray, and all mounting hardware
  • Wet sump design
  • Max stroke 3.620 w/windage tray

24241872

Magnetic Drain Plug

  • Catches and holds small pieces of metal before they can cause damage

12612350

Oil Pan Gasket, 1-Piece Rear Main Seal

  • Requires 1 per engine
  • Fits all LS-Series engines except LS7 and LS9

12612351

Oil Pan Gasket

  • Requires 1 per engine
  • For LS7 and LS9 engines

11515758

Oil Pan Bolt

  • M8 x 30mm long
  • Requires 12 per engine (use 13 with LS7 and LS9 engines)
  • For LS1, LS2, LS6, LS7 and L92 engines

12554990

Oil Pan Bolt

  • M6 x 136mm long
  • Requires 2 per engine
  • For all LS-Series engines

12612289

Oil Pump

  • For L92 engines

12623097

Oil Pump

  • 2-stage pump for LS7 engines
  • Will not work on standard LS crankshafts
  • Must use crank sprocket (P/N 12581278), timing damper (P/N 12581276), LS7 pickup tube (P/N 12580855), LS7 oil pan (P/N 12664619), and LS7 timing cover (P/N 12633907)

11519133

Oil Pump Bolt

  • Requires 4 per engine
  • For all LS-Series engines
