INTAKE MANIFOLDS, GASKETS AND COMPONENTS

Intake manifolds distribute the air/fuel mixture to the appropriate cylinders. Intake manifold design is geared toward the end usage, whether that is a street performance engine or an all-out competition application. The wide range of Chevrolet Performance intake manifolds means there is an ideal manifold for your many needs. There are cast-iron and aluminum intake manifolds for carbureted and fuel injected applications. Chevrolet Performance intake manifolds were designed specifically for GM engines, so you know they will deliver OE performance.

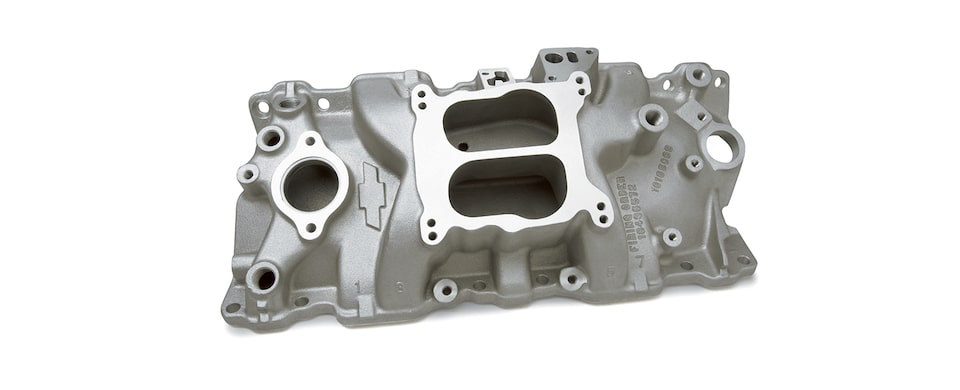

10185063

Intake Manifold, ZZ Series

  • Aluminum manifold used on all 350 HO engines
  • Can be used on all Small-Blocks through 1986
  • Dual-pattern carburetor flange is approximately 1/2" lower than the 1970 LT1 intake, yet produces the same horsepower
  • Provisions for all late-model accessory brackets, EGR, and an integral hot-air choke
  • A heat shield can be mounted underneath for improved performance

NOTE: Open carburetor spacer is not recommended for use with dual-plane intake manifolds.

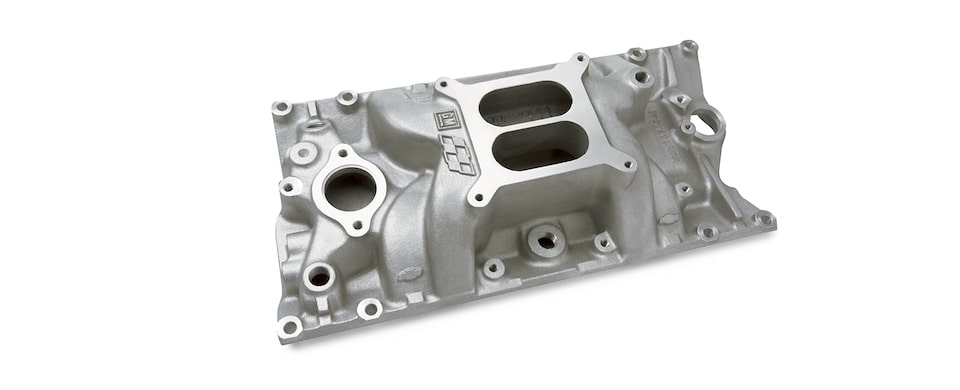

12366573

Intake Manifold, Vortec Head Design

  • Designed for 283-400-cubic-inch engines using Vortec cylinder heads P/N 12558060, P/N 19300956, P/N 19300955, P/N 19331470, or P/N 19331472
  • Has 4-bolts per side to attach it to these cylinder heads
  • Aluminum high-rise design maximizes horsepower and delivers a broad torque curve
  • Accepts a square-bore 4150-style carburetor and includes externally plumbed hot water crossover passage
  • Use manifold gasket P/N 89017465 and eight attachment bolts, P/N 12550027

NOTE: Vortec heads were originally released on 1996-1999 truck engines. Check for hood clearance, especially with Corvette.

NOTE: Open carburetor spacer is not recommended for use with dual-plane intake manifolds.

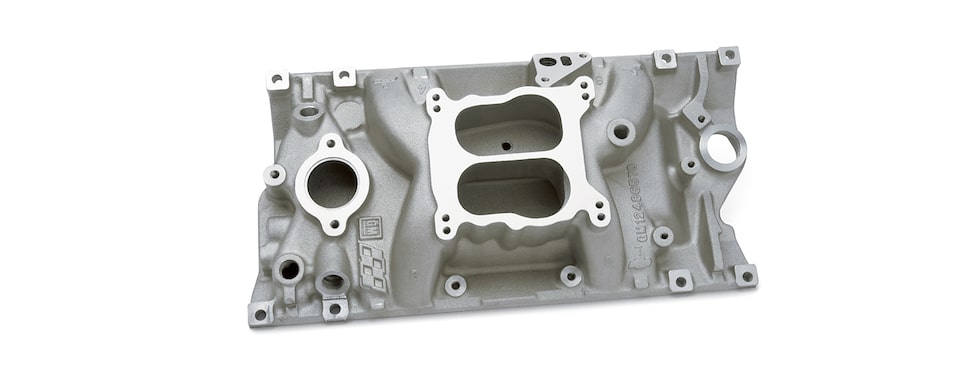

12496820

Intake Manifold, Vortec Head Design (Dual-Pattern Carb Mount)

  • This dual-bolt-pattern aluminum manifold will work with all Vortec cylinder heads P/N 12529093, P/N 12558060, P/N 19300956, P/N 19300995, P/N 19331470, or P/N 19331472
  • Will accept Holley or Quadrajet-style carburetors
  • Will accept an EGR valve, P/N 17052693
  • To block EGR port, use P/N 12556596
  • Requires intake manifold gasket kit P/N 19301685 and 8 special manifold bolts, P/N 12550027

NOTE: Open carburetor spacer is not recommended for use with dual-plane intake manifolds.


12496821

Intake Manifold, Vortec Head Design for TBI

  • Designed for throttle-body fuel injection
  • Aluminum intake will work with all Vortec cylinder heads, including P/N 12558060, P/N 19300956, P/N 19300955, P/N 19331470, or P/N 19331472
  • Also accepts EGR

NOTE: The exhaust manifold from 1996-and-newer pickup trucks with RPO L31 350 engine, P/N 12557828, is drilled and tapped to accept an EGR tube. EGR pipe P/N 10220275 can be used with EGR Valve P/N 19210662 and gasket P/N 12337972. This manifold is primarily intended for use with Vortec heads on pre-1996 engine blocks. Blocks manufactured in 1995 or earlier have thermostat bypass passage from the block directly to the water pump. If manifold is used on 1996 and later engines (which do not have the bypass in the block), you must run a coolant bypass line from the manifold to the 5/8" hose nipple on the water pump (passenger’s side). Suggested routing is from the 3/8 NPSF boss on manifold to the water pump.

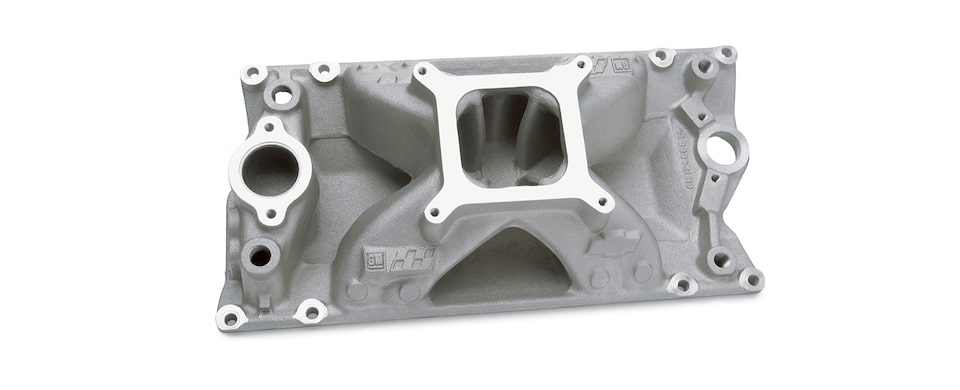

12496822

Intake Manifold, Eliminator Vortec Head Design

  • Designed to deliver the most power and torque with Vortec cylinder head P/N 12529093, P/N 12558060, P/N 19300956, P/N 19300955, P/N 19331470 or P/N 19331472
  • Use intake manifold gasket kit P/N 19301685 and 8 special manifold bolts P/N 12550027

24502592

LT1 Intake Manifold

  • Fits 1992-1996 Gen II LT1 engines and permits the use of a carburetor
  • Long runners increase engine torque up to 30 lb.-ft. without sacrificing top-end horsepower
  • There are no water coolant holes on this manifold

12676887

SP 350/357 Dual-Plane Intake Manifold

  • Original Equipment on SP 350/357 Engine
  • Dual-Plane Design for Maximum torque
  • Designed for 4150-style 4 bbl carb
  • Fits late-model Vortec style heads
  • Do not use a carb spacer with this manifold

NOTE: Open carburetor spacer is not recommended for use with dual-plane intake manifolds.

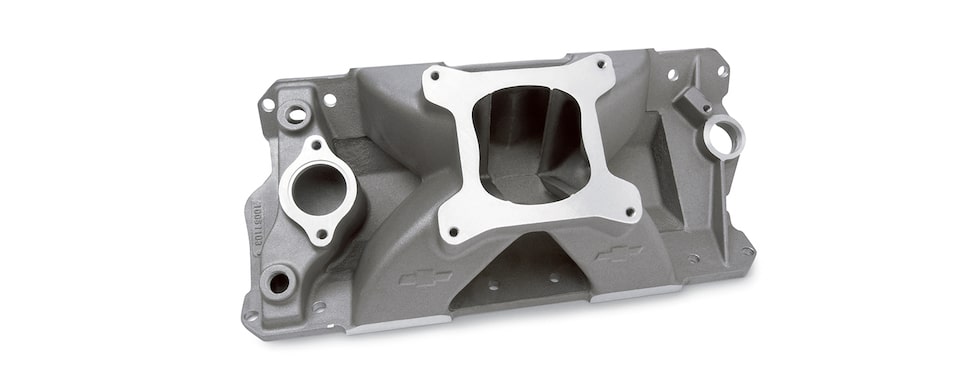

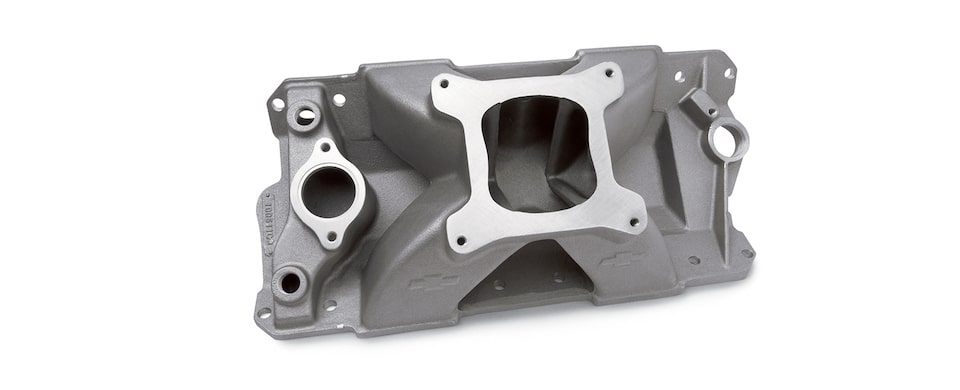

10051103

Bowtie Intake Manifold, Raised Runner

  • Runners of this single-plane aluminum intake manifold are raised .200" to match the ports of Bowtie cylinder head P/N 10051101 (discontinued)
  • Air gap beneath the runners isolates the intake charge from hot engine oil
  • A 2" carburetor spacer is recommended
  • Accepts standard-flange 4-bbl carb
  • For competition use only, as there are no heat riser passages

NOTE: Open carburetor spacer is not recommended for use with dual-plane intake manifolds.


10051102

Bowtie Intake Manifold, Standard Runner

  • This standard-runner manifold is based on the raised-runner intake P/N 10051103 (see above)

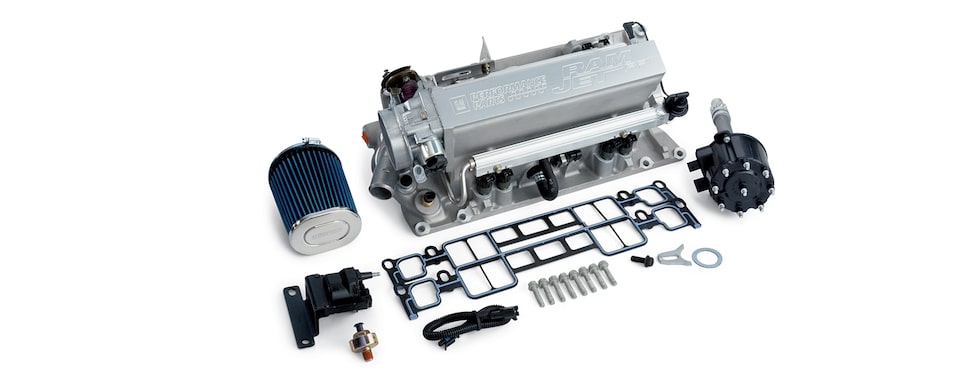

12498032

Ram Jet Fuel Injection Manifold Kit (less electronics)

  • Retro-fit fuel injection kit will fit V-8 engines using Vortec cylinder heads P/N 12558060, P/N 19300956, P/N 19300955, P/N 19331470, or P/N 19331472
  • Must be used with an aftermarket ECU and wiring harness with the proper calibration
  • The same as used on Ram Jet 350 engine P/N 12499120. (MEFI with ECU and Wire Harness Kit P/N 12499116 is not calibrated for anything other than Ram Jet 350.)

Kit includes the following (as well as brackets, sensors, bolts, nuts, gaskets, and other small parts):

Throttle Body

Ignition Wire

Air Cleaner

8 Fuel Injectors

6 Knock Sensor

Fuel Pressure Regulator

Intake Manifold

Coil

Distributor

Injector Rail

MAP Sensor

Engine Temp Sensor

NOTE: Kit does not include ECU or wiring harness, which must be sourced separately.

12489371

Ram Jet 350 Intake Manifold

  • Used on the Ram Jet 350 engine assembly P/N 12499120
  • Bare manifold only – no throttle body, injector rails, injectors, bracket or other components
  • See P/N 12498032 for complete manifold kit

RAM JET ELECTRONICS

88962717

MEFI 4 ECU, Ram Jet 350

  • Replacement ECU for all Ram Jet 350 crate engines, MEFI 3 P/N 12495515 or MEFI 4 P/N 12499120 MEFI 4 Ram Jet engine is a closed-loop system that gives a much smoother idle and improved performance

NOTE: Replacing the ECU on MEFI 3 Ram Jet engine P/N 12495515 requires using new wire harness kit P/N 12499116, or use jumper wire P/N 88963118 to use MEFI 4 ECU as an open-loop system.


12499116

MEFI 4 ECU and Wire Harness Kit, Ram Jet 350

  • Use to convert a Ram Jet 350 from MEFI 3 to the newer MEFI 4 design, which provides a better idle through closed-loop operation
  • Includes ECU module P/N 88962717, wire harness P/N 88961967, oxygen sensor P/N 19178918, intake air temp sensor P/N 25036751, and oxygen sensor fitting P/N 15156588

NOTE: ECU is programmed with a “green mode” that controls the rpm for the break-in period. During this period, engine speed is limited to 4,000 rpm in the first hour, 4,500 rpm in the second hour and 5,500 rpm in the third hour.


88961967

MEFI 4 ECU Wire Harness, Ram Jet 350

  • Designed to be used with the MEFI 4 Ram Jet 350 P/N 12499120 and MEFI 4 ECU P/N 88962717

15156588

Fitting, Oxygen Sensor

  • Used on all MEFI 4 electronic controlled ignition systems
  • Should be welded into the exhaust pipe so the oxygen sensor can be screwed into the exhaust system

12489492

MEFI 3 ECU Wire Harness, Ram Jet 350

  • Designed for use with the MEFI 3 350 Ram Jet engine P/N 12495515 using ECU P/N 12489488

BOWTIE COMPETITION MANIFOLDS

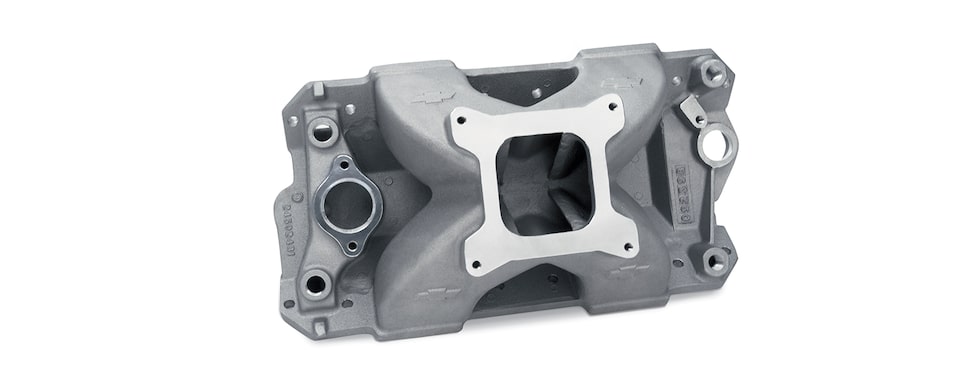

24502481

Intake Manifold, 18° Competition

  • Developed for stock car short tracks and works well on road racing engines
  • Features runners and plenum volume sized to enhance mid-range torque. Aluminum intake fits 18° heads casting
  • Manifold is ideal for 310-cubic-inch road racing and 358-cubic-inch short track engines
  • Manifold flanges are 0.590" thick to promote a good gasket seal
  • An auxiliary water line boss at the rear of the casting improves water flow
  • Weight 22.5 lbs
  • Volume 2700cc

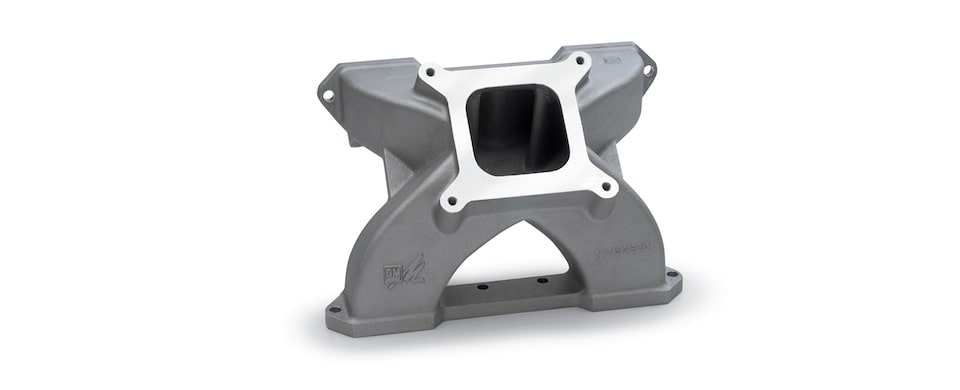

24502653

Intake Manifold, Spider Design

  • A 2-piece “dry” aluminum manifold “spider” consisting of the runners and plenum only
  • The runners, called the “spider assembly” by racers, along with valley plate assembly – the common term for the bottom section of the intake (see P/N 24502654 below) – are designed for use with the 18° cylinder heads with a date code of June 1996 or newer

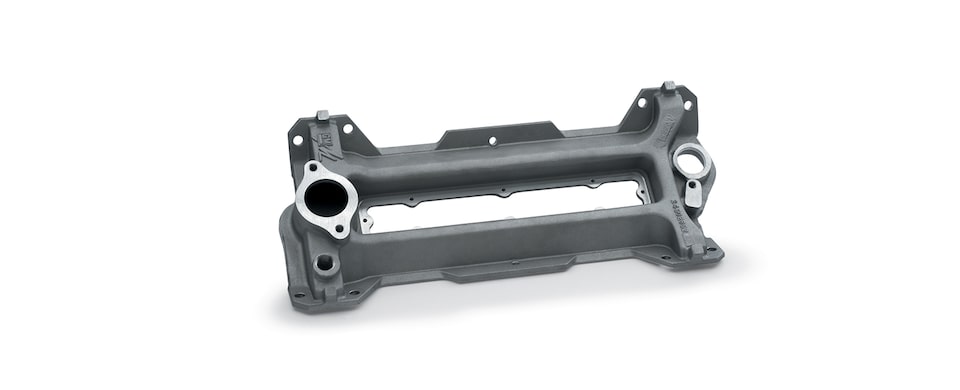

24502654

Valley Plate Assembly

  • Universal aluminum valley plate is designed for use with 18°cylinder heads
  • Can be used with dedicated 2-piece manifold spiders, existing 1-piece intake manifolds which have been properly machined for use as a dry manifold, or fabricated manifold designs
  • Valley plate has cast-in integral passages to equalize coolant flow from the front and the rear of the cylinder heads
  • Fits heads dated June 1996 and later

NOTE: Important information about gasket matching: Gasket flanges are machined to provide the proper port alignment with standard runner locations. Runners in heads and manifold must be matched by engine builder. Often, the gasket will line up with the top of the port so removal is required at the bottom of the port. Gaskets that can be used with this manifold are: Fel-Pro® P/N 1205 and P/N 1206, and Mr. Gasket® P/N 102. Always match the gasket to the cylinder head you plan to use to ensure a correct fit.


STOCK CAR INTAKE MANIFOLDS

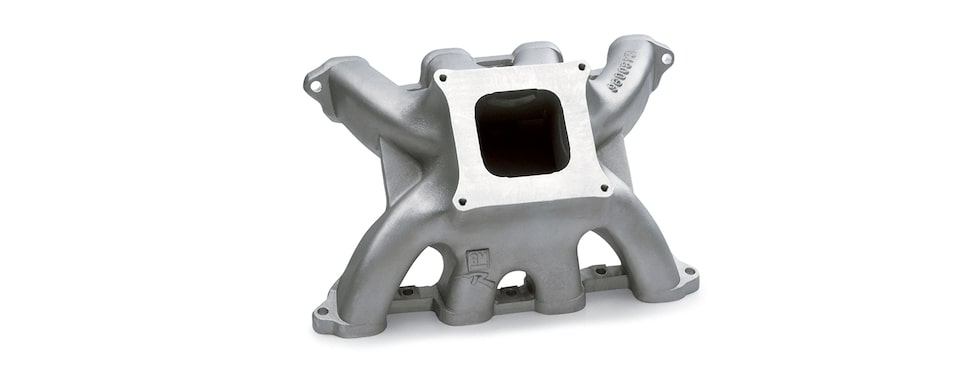

12480096

Intake Manifold, Spider Restrictor Design – SB2.2

  • Aluminum manifold has more material in the runners and plenum to accept more flexibility in porting
  • Designed for Stock Car Racing restrictor-plate racing and is used with valley plate assembly P/N 12370840 (see below)

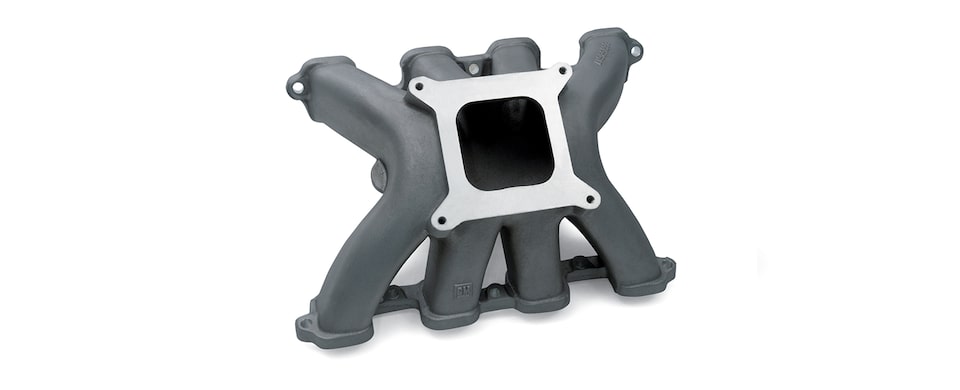

88958617

Intake Manifold, Spider Design – SB2.2

  • Designed for Stock Car-style racing and high-rpm engines
  • Additional aluminum in the runners and plenum allows more flexibility in porting
  • Must be used with valley plate assembly P/N 12370840 or P/N 88958659

12370840

Valley Plate Assembly, SB2.2

  • Aluminum valley cover is used with manifold runners P/N 12480096 and P/N 88958617 on SB2.2 cylinder heads for Stock Car Racing

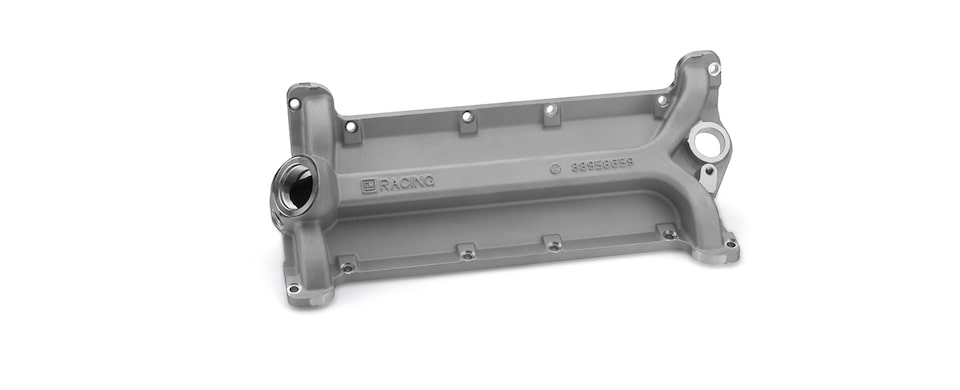

88958659

Valley Plate Assembly, SB2.2

  • Aluminum valley cover is used with manifold runners P/N 12480096, P/N 88958617 and P/N 88958691
  • Does not incorporate an inspection cover, but has revised integral water passage for improved coolant flow from the front and rear of the cylinder heads
  • Uses AN -24 fitting for water outlet; can use reducer for AN-20 fitting

88958670

Valley Plate Assembly, R0X

  • Fits R0X manifold and R0X head P/N 88958667

COVERS AND PLUGS

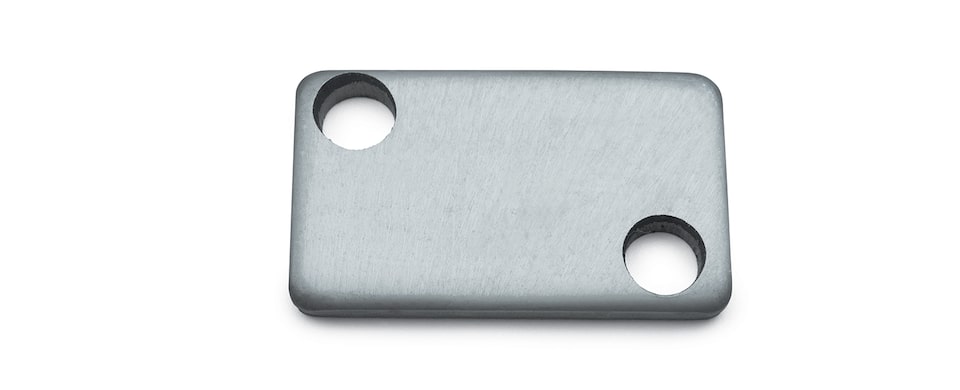

14094792

Choke Hole Cover

  • Covers the choke hole on the 350 HO manifold P/N 10185063
  • Use gasket P/N 14096848 and screw P/N 9442184 with washer P/N 9439511

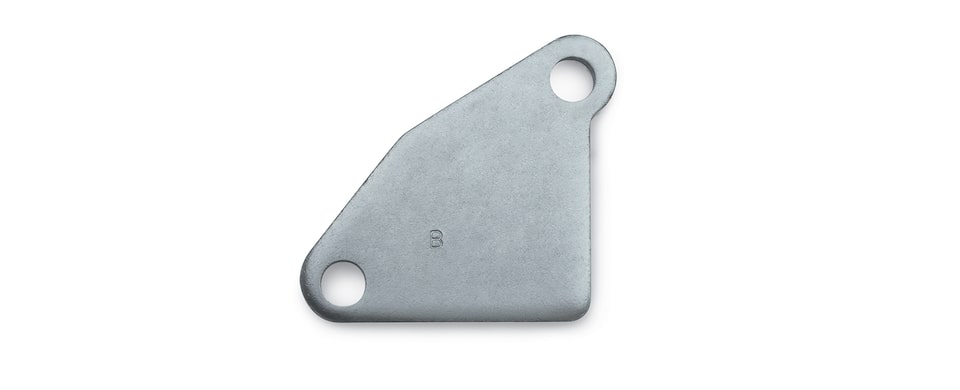

6269414

Cover, EGR Valve

  • Covers the EGR valve port on the 350 HO manifold P/N 10185063
  • Use gasket P/N 12554530 and screw P/N 9442184 with washer P/N 9439511

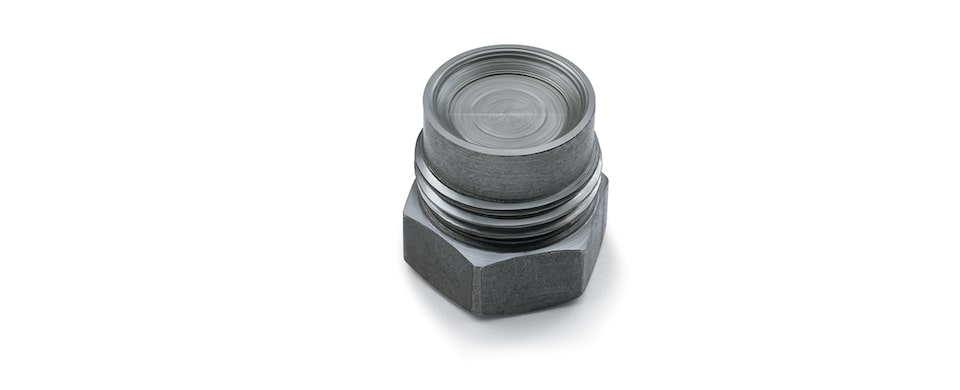

12556596

Plug, EGR Pipe Hole

  • 7/8"-15 plug is used to seal off EGR pipe holes on intake manifold P/N 12496820 and P/N 12496821

CHROME WATER NECKS

12342024

Water Neck

  • Chrome water neck with neoprene O-ring and chrome bolts
  • For 1966-1975 full-size Chevrolet, Camaro, and Chevelle V-8 engines

10108470

Aluminum Water

  • Natural finish

INTAKE MANIFOLD GASKETS

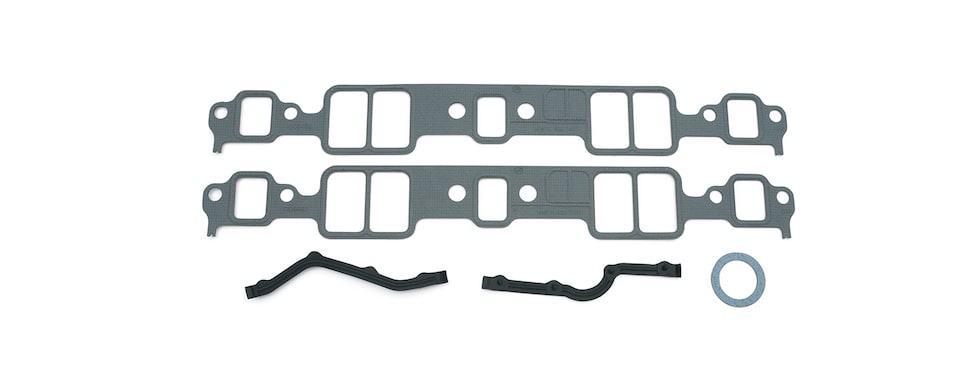

10147994

Gasket Kit, 1971-1986 and ZZ350

  • For 302-350 high-performance Small-Blocks built from 1971-1986, and all ZZ350 high-performance engines
  • Gaskets fit standard intake port location
  • Do not use with raised runner cylinder heads
  • Includes 2 gaskets

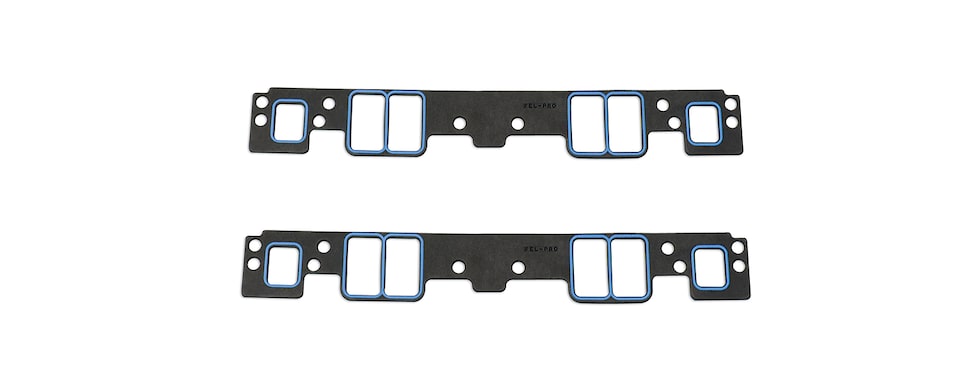

19301685

Gasket Kit, Fast Burn Aluminum Vortec Design

  • Designed for Vortec heads, P/N 12558060, P/N 19300955 and P/N 19300956 only
  • Gasket thickness is 0.120" (1/8"), post size is 1.080" x 2.160" with tapered wall, Print-O-Seal design
  • Has both early style 6-bolt pattern and Vortec 4-bolt pattern
  • Includes 2 gaskets

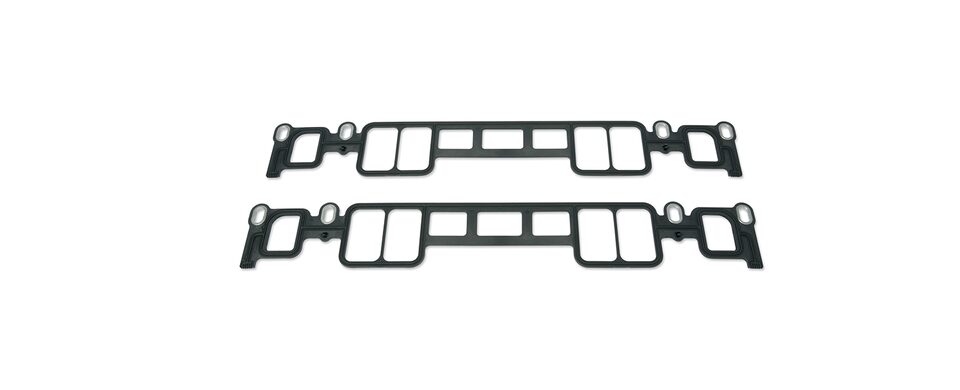

89017465

Gasket Kit, Production Vortec Design

  • Production gasket for all Vortec-design cylinder heads (4-bolt attachment to cylinder heads P/N 12529093 and P/N 12558060)
  • Requires the use of GM attachment bolt P/N 12550027, because the bolt has a ball design on the end that sits in the head so it will not crush the intake manifold gasket
  • Includes 2 gaskets

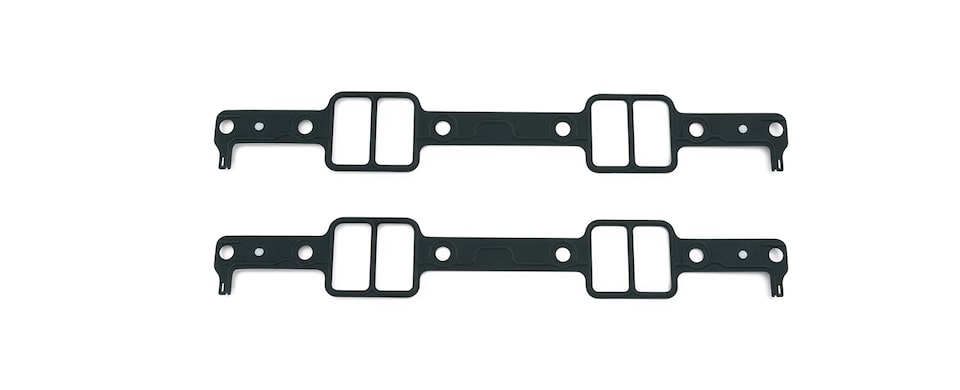

12528884

Gasket Kit, LT4

  • Used on the LT4 engine P/N 12371172
  • Can be used with all LT4 heads and is designed not to cover part of the cylinder head opening – as production gaskets do
  • Includes 2 gaskets

10185042

Gasket Kit, Splayed-Valve

  • Used only on the splayed-valve V-8 cylinder heads P/N 24502517
  • Includes 2 gaskets
  • Includes 2 gaskets

10185007

Gasket Kit, 18-Degree High Port Heads

  • Used only with V-8 18° high port cylinder heads P/N 10134363 and P/N 24502580
  • Includes 2 gaskets

12524653

Gasket Kit, LT1 4-bbl Conversion

  • Required when installing a 4-bbl manifold on any LT1 engine
  • Includes 2 gaskets
