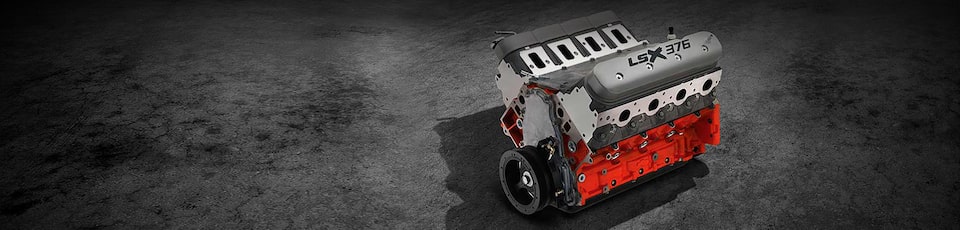

Build boost on a budget

Chevrolet Performance takes the LSX Bowtie standard-deck block, adds blower-friendly 9.0:1 forged pistons and combines them with the LS3’s high-flow, rectangular-port heads.

PART NO. 19332312

WhyBuy

476 HP @5900 RPM

WhyBuy

475 LB-FT @4700 RPM

Forced-induction friendly

The LSX376-B8 is designed for lower-boost applications, up to about 8 pounds. That’s suitable for most supercharger and turbo kits that are designed to be used with production-based applications.

Installation Guides

Find everything from vital data about your engine’s capabilities to how to install it into your build.

LSX376-B8 Tech Specs

  • Part Number: 19332312
  • Engine Type: LSX-Series Gen-IV Small-Block V-8
  • Displacement (cu. in.): 376 (6.2L)
  • Bore x Stroke (in.): 4.065 x 3.622 (103.25 x 92 mm)
  • Block (P/N 19260095): LSX cast-iron with six-bolt, cross-bolted main caps
  • Crankshaft (P/N 12685659): Nodular iron
  • Connecting Rods (P/N 12649190): Powdered metal
  • Pistons (P/N 19244016): Forged aluminum
  • Camshaft Type (P/N 12623063): Hydraulic roller
  • Valve Lift (in.): 0.551 intake / 0.522 exhaust
  • Camshaft Duration (@0.050 in.): 204° intake / 211° exhaust
  • Cylinder Heads (P/N 12629063): LS3 rectangular port; with “as cast” 68-cc chambers
  • Valve Size (in.): 2.160 intake / 1.590 exhaust
  • Compression ratio: 9:1
  • Rocker Arms (P/N 12669995 int): Investment-cast, roll trunnion
  • Rocker Arms (P/N 12681275 exh): Investment-cast, roll trunnion
  • Rocker Arm Ratio: 1.7:1
  • Recommended Fuel: Regular pump
  • Maximum Recommended rpm: 6600
  • Reluctor Wheel: 58X
  • Balanced: Internal
